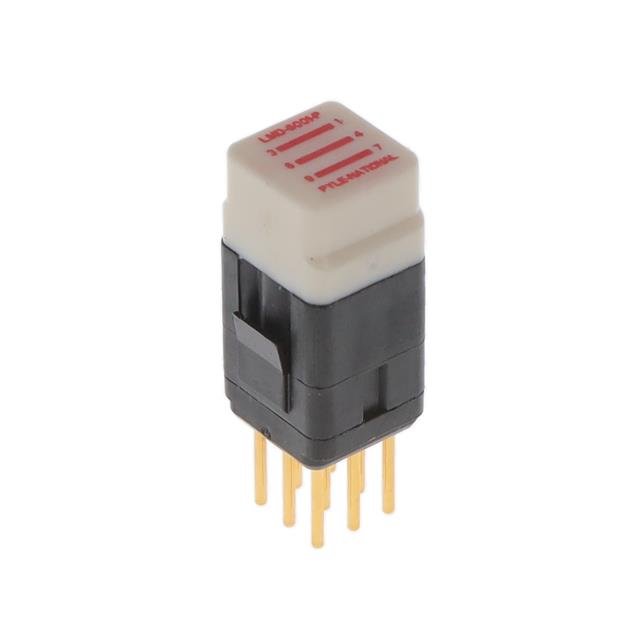

LMD-6001-P

Active

Amphenol Aerospace Operations

CONN FEEDBACK MOD SZ20 1.326" L

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN FEEDBACK MOD SZ20 1.326" L

Technical Specifications

Parameters and characteristics for this part

Part	Module Capacity	Type	Contact Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension
Amphenol Aerospace Operations LMD-3004-P	1	Feedback Module Block	8	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-7111-P		Module Relay	22	1.32 "		33.53 mm
Amphenol Aerospace Operations LMD-3004-S	1	Feedback Module Block	8	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-4001-S	9	Feedback Module Block	20	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-4020-96LD		Contact	20	0.72 in		18.29 mm
Amphenol Aerospace Operations LMD-4008-36L		Contact	8	0.959 in			24.36 mm
Amphenol Aerospace Operations LMD-4001-P	9	Feedback Module Block	20	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-6002-P	2	Feedback Module Block	20	1.326 in		33.68 mm
Amphenol Aerospace Operations LMD-6001-P	3	Feedback Module Block	20	1.326 in		33.68 mm
Amphenol Aerospace Operations LMD-4120-96LD		Contact	20	0.656 in		16.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 483.56

General part information

Connector Feedback Module Block Contact Size 20
