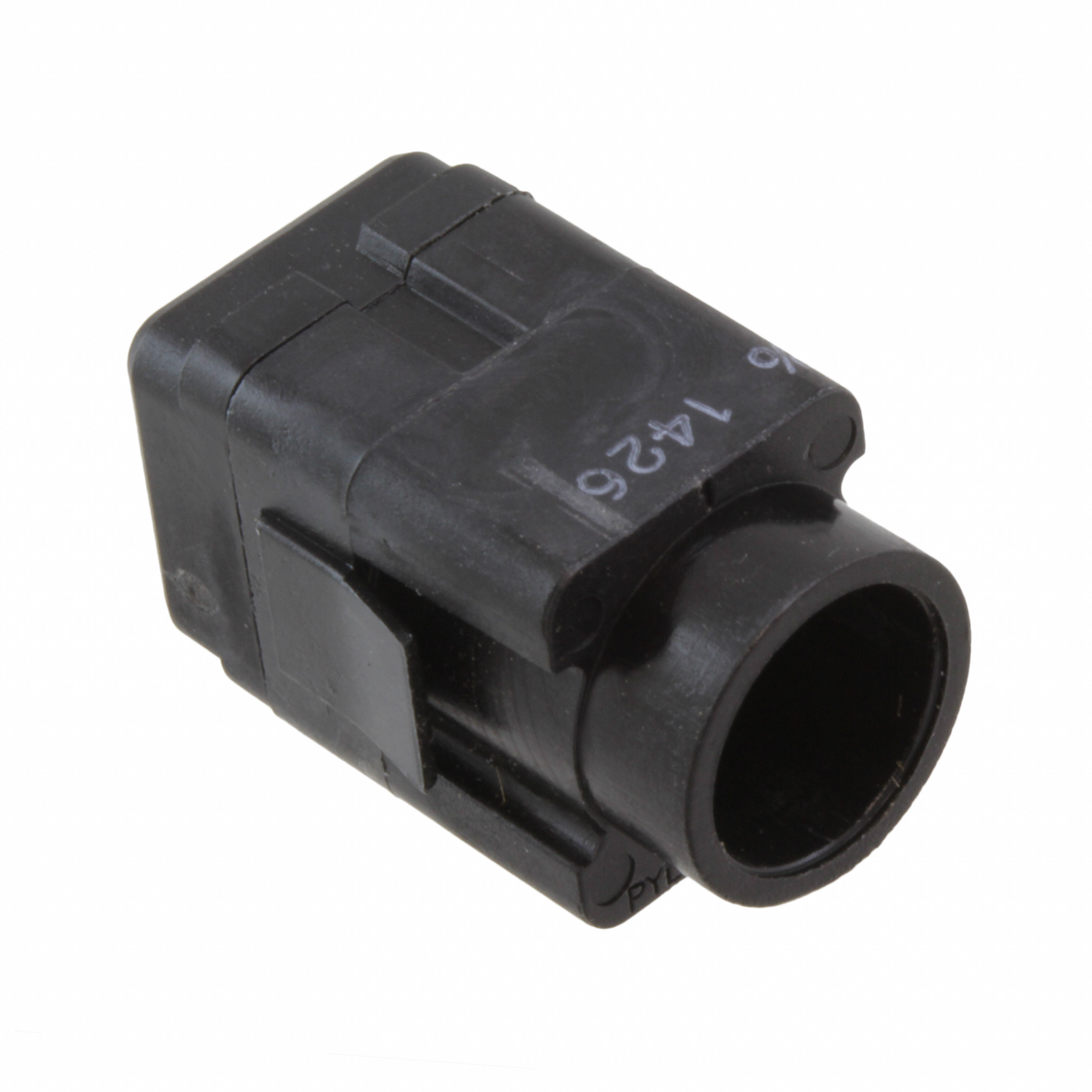

LMD-3004-P

Active

Amphenol Aerospace Operations

CONN FEEDBACK MOD SZ8 0.5" L

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN FEEDBACK MOD SZ8 0.5" L

Technical Specifications

Parameters and characteristics for this part

Part	Module Capacity	Type	Contact Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension
Amphenol Aerospace Operations LMD-3004-P	1	Feedback Module Block	8	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-7111-P		Module Relay	22	1.32 "		33.53 mm
Amphenol Aerospace Operations LMD-3004-S	1	Feedback Module Block	8	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-4001-S	9	Feedback Module Block	20	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-4020-96LD		Contact	20	0.72 in		18.29 mm
Amphenol Aerospace Operations LMD-4008-36L		Contact	8	0.959 in			24.36 mm
Amphenol Aerospace Operations LMD-4001-P	9	Feedback Module Block	20	0.5 in	0.449 " 11.4 mm
Amphenol Aerospace Operations LMD-6002-P	2	Feedback Module Block	20	1.326 in		33.68 mm
Amphenol Aerospace Operations LMD-6001-P	3	Feedback Module Block	20	1.326 in		33.68 mm
Amphenol Aerospace Operations LMD-4120-96LD		Contact	20	0.656 in		16.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Feedback Module Block Contact Size 8
