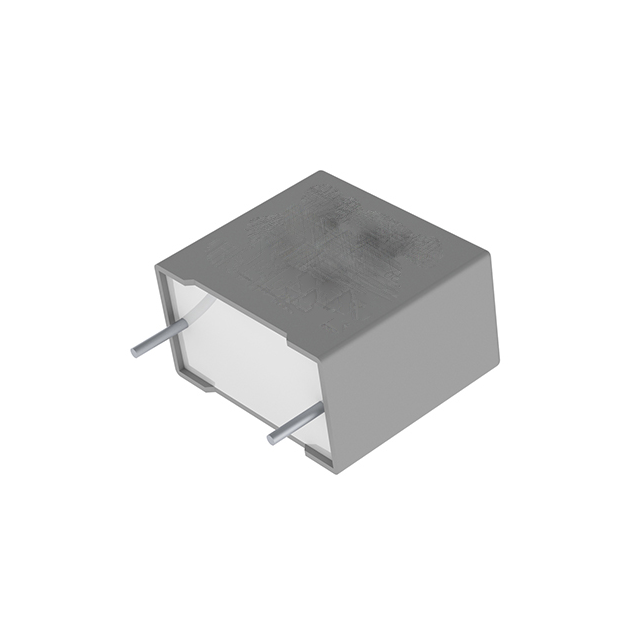

R413I24704000M

Active

KEMET

CAP FILM 0.047UF 20% 1KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

R413I24704000M

Active

KEMET

CAP FILM 0.047UF 20% 1KVDC RAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R413I24704000M

Applications	EMI, RFI Suppression, Automotive
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	Y2, AEC-Q200, X1
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	300 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

R413I Series

Part	Mounting Type	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Package / Case	Ratings	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R413I222050T0K	Through Hole	0.022 µF	7.5 mm	18 mm	0.295 in	0.709 in	PC Pins	1.5 kVDC	1.5 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	125 °C	-40 °C	10 %	15 mm	0.591 in	300 V
KEMET R413I233000M1K	Through Hole	0.033 çF	7.5 mm	18 mm	0.295 in	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	10 %	15 mm	0.591 in	300 V
KEMET R413I14704000M	Through Hole	4700 pF	5 mm	18 mm	0.197 "	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	20 %	15 mm	0.591 in	300 V	0.437 in	11.1 mm
KEMET R413I2100CK00K	Through Hole	10000 pF	5 mm	18 mm	0.197 "	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	10 %	15 mm	0.591 in	300 V	0.437 in	11.1 mm
KEMET R41BI268050T0K	Through Hole	0.068 µF	0.433 in 11 mm	0.709 " 18 mm			PC Pins	1.5 kVDC	1.5 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	125 °C	-40 °C	10 %	15 mm	0.591 in	350 V
KEMET R413I21005000K	Through Hole	10000 pF	5 mm	18 mm	0.197 "	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	10 %	15 mm	0.591 in	300 V	0.437 in	11.1 mm
KEMET R413I24704000M	Through Hole		8.5 mm	18 mm	0.335 in	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	20 %	15 mm	0.591 in	300 V			0.571 in	14.5 mm
KEMET R413I2470JU00M	Through Hole		8.5 mm	18 mm	0.335 in	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	20 %	15 mm	0.591 in	300 V			0.571 in	14.5 mm
KEMET R413I147050T0K	Through Hole	4700 pF	5 mm	18 mm	0.197 "	0.709 in	PC Pins	1.5 kVDC	1.5 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	125 °C	-40 °C	10 %	15 mm	0.591 in	300 V	0.437 in	11.1 mm
KEMET R413I14700000M	Through Hole	4700 pF	5 mm	18 mm	0.197 "	0.709 in	PC Pins	1 kVDC	1 kV	Metallized Polypropylene (PP)	Radial	AEC-Q200 X1 Y2	Automotive EMI RFI Suppression	110 °C	-40 °C	20 %	15 mm	0.591 in	300 V	0.437 in	11.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.11
		10	$ 0.84
		500	$ 0.50
		1000	$ 0.44
		5000	$ 0.40
		10000	$ 0.38
Newark	Each	500	$ 0.49
		1000	$ 0.44
		2500	$ 0.40

Description

General part information

R413I Series

0.047 µF Film Capacitor 300V 1000V (1kV) Polypropylene (PP), Metallized Radial
