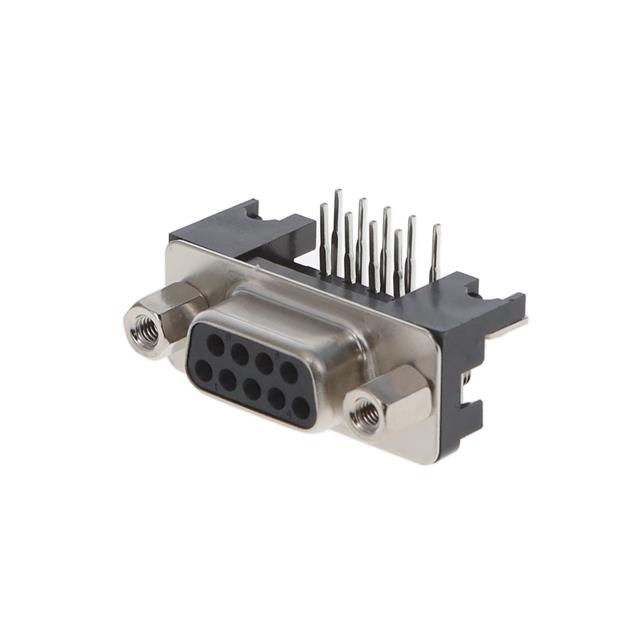

XM3B-0922-111

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 9POS SLDR

Deep-Dive with AI

DocumentsXM2x,XM3x Series Overview Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.32
		90	$ 4.25
		1080	$ 3.08

Description

General part information

XM3B Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

XM2x,XM3x Series Overview

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM3B-0922-111	XM3B Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	-	Gold
Contact Finish Thickness	-	Flash
Contact Finish Thickness	-	16 µin
Contact Finish Thickness	-	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 - 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded	Shielded, Board Lock
Flange Feature	-	Female Screwlock, Mating Side, Female Screwlock (4-40), Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	-	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Number of Positions	9	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-55 - -25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC
