XM3B-0942-112L

Obsolete

Omron Electronics Inc-EMC Div

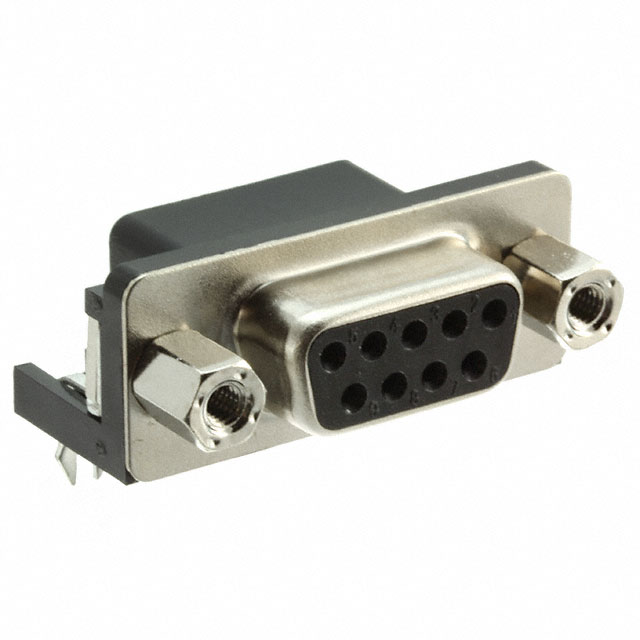

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XM3B-0942-112L

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XM3B Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM3B-0942-112L	XM3B Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	16 µin
Contact Finish Thickness	-	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 - 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	-	Female Screwlock, Mating Side, Female Screwlock (4-40), Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Number of Positions	9	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-55 - -25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XM3B Series

CONN D-SUB RCPT 15POS R/A SLDR

Part	Contact Type	Number of Positions	Current Rating (Amps)	Dielectric Material	Voltage Rating	Shell Size, Connector Layout	Connector Style	Contact Finish	Contact Material	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Color	Features	Connector Type	Contact Finish Thickness	Shell Material, Finish	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature
Omron Electronics Inc-EMC Div XM3B-1542-112L	Signal	15	5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC	2	D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-55 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets	Flash	Nickel Plated, Steel
Omron Electronics Inc-EMC Div XM3B-3722-112	Signal	37	5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-55 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets		Nickel Plated, Steel	4 (DC, C)	16 µin	0.41 µm
Omron Electronics Inc-EMC Div XM3B-2522	Signal		5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub		Phosphor Bronze	UL94 V-0	Through Hole, Right Angle	105 ░C	-55 °C	2	Solder	Black	Shielded	Receptacle, Female Sockets		Nickel Plated, Steel				B, DB	3
Omron Electronics Inc-EMC Div XM3B-0942-112L	Signal	9	3 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-25 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets	Flash	Nickel Plated, Steel				DE, E	1
Omron Electronics Inc-EMC Div XM3B0942112LS	Signal	9	3 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-25 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets		Nickel Plated, Steel		16 µin	0.41 µm	DE, E	1	Female Screwlock, Mating Side
Omron Electronics Inc-EMC Div XM3B-2522-112	Signal		5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-55 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets		Nickel Plated, Steel		16 µin	0.41 µm	B, DB	3
Omron Electronics Inc-EMC Div XM3B-0922-111	Signal	9	3 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub		Phosphor Bronze	UL94 V-0		105 ░C	-25 °C	2	Solder	Black	Shielded	Receptacle, Female Sockets		Nickel Plated, Steel				DE, E	1
Omron Electronics Inc-EMC Div XM3B-2522-132	Signal		5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-55 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets		Nickel Plated, Steel		16 µin	0.41 µm	B, DB	3	Female Screwlock (4-40), Mating Side
Omron Electronics Inc-EMC Div XM3B-2522-502	Signal		5 A	Polybutylene Terephthalate (PBT), Glass Filled	300 VDC		D-Sub	Gold	Phosphor Bronze	UL94 V-0	Panel Mount, Right Angle, Through Hole	105 ░C	-55 °C	2	Solder	Black	Board Lock, Shielded	Receptacle, Female Sockets		Nickel Plated, Steel		16 µin	0.41 µm	B, DB	3	Housing/Shell (Unthreaded)
