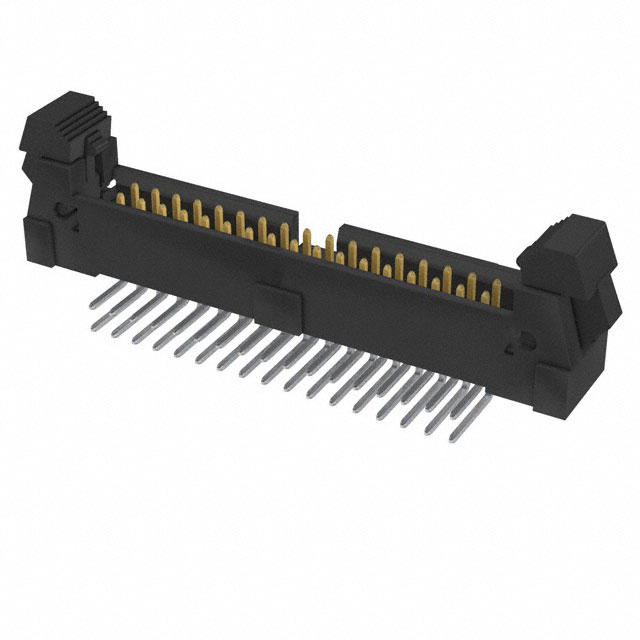

EHT-117-01-SM-D-RA

Active

Samtec Inc.

CONN HEADER R/A 34POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-117-01-SM-D-RA

Active

Samtec Inc.

CONN HEADER R/A 34POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-117-01-SM-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-117 Series

Part	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Material	Contact Material	Mounting Type	Shrouding	Number of Positions	Fastening Type	Style	Insulation Height	Insulation Height	Contact Finish - Post	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. EHT-117-01-S-D-SM-01	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black	33	3 A	Male Pin
Samtec Inc. EHT-117-01-S-D-01	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black	33	3 A	Male Pin	0.114 in	2.9 mm
Samtec Inc. EHT-117-01-S-D-SM-K-TR	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot Pick and Place	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All
Samtec Inc. EHT-117-01-F-D-SM-SR	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot Strain Relief	3 µin	0.076 µm	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All
Samtec Inc. EHT-117-01-L-D-RA	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Through Hole Right Angle	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire			Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot	15 µin	0.38 µm	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All	0.12 in	3.05 mm	0.3 in	7.62 mm
Samtec Inc. EHT-117-01-SM-D-SM-P	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot Pick and Place	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All
Samtec Inc. EHT-117-01-F-D-SM-SR-LC	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Board Lock Keying Slot Strain Relief	3 µin	0.076 µm	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All
Samtec Inc. EHT-117-01-SM-D-RA	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Through Hole Right Angle	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire			Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All	0.12 in	3.05 mm	0.3 in	7.62 mm
Samtec Inc. EHT-117-01-S-D-SM-K	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot Pick and Place	30 Áin	0.76 Ám	3.05 mm	0.12 in	2	Black		3 A	Male Pin			All
Samtec Inc. EHT-117-01-L-D-SR	Square	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	34	Latch Lock/Eject Hooks	Board to Cable/Wire	0.37 in	9.4 mm	Tin	Solder	0.079 in	2 mm	Gold	-55 °C	125 °C	Header	Keying Slot Strain Relief	15 µin	0.38 µm	3.05 mm	0.12 in	2	Black		3 A	Male Pin	0.114 in	2.9 mm	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	11	$ 18.71

Description

General part information

EHT-117 Series

Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
