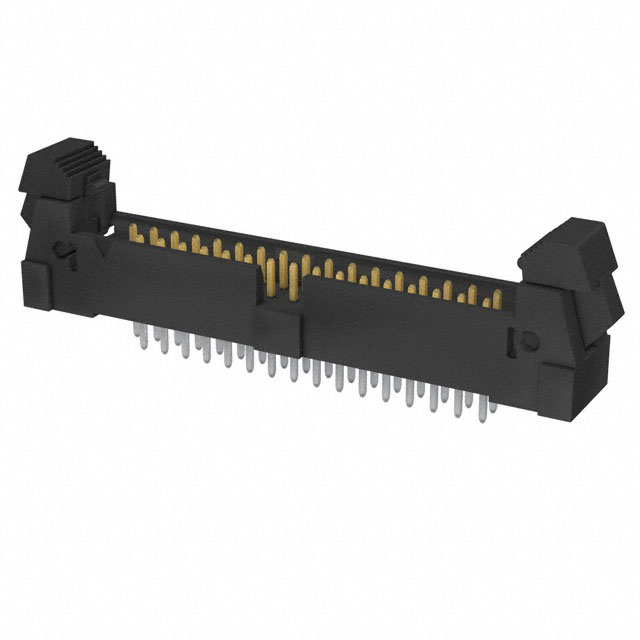

EHT-117-01-S-D-01

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS 2.00 MM SHROUDED IDC EJECTOR HEADER

EHT-117-01-S-D-01

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS 2.00 MM SHROUDED IDC EJECTOR HEADER

Description Specifications Series Pricing CAD Documents

Description

General part information

EHT Series

Connector Header Through Hole 34 position 0.079" (2.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-117-01-S-D-01

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.12 in
Contact Length - Post	0.114 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Eject Hooks, Latch Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	33
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

EHT Series

...

Part	Shrouding	Contact Type	Features	Contact Shape	Contact Material	Insulation Color	Connector Type	Material Flammability Rating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Current Rating	Number of Positions	Termination	Insulation Height	Style	Insulation Material	Row Spacing - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Length - Post
Samtec Inc. EHT-110-01-S-D-SM-20	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in	19	Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	20	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount
Samtec Inc. EHT-118-01-S-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	36	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Through Hole	All	0.114 in
Samtec Inc. EHT-108-01-H-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	16	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Gold	30 µin	2	Through Hole	All	0.114 in
Samtec Inc. EHT-117-01-S-D-01	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in	33	Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	34	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Through Hole		0.114 in
Samtec Inc. EHT-107-01-F-D-SM-P	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	14	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Surface Mount	All
Samtec Inc. EHT-107-01-S-D-SM-K-TR	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	14	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount	All
Samtec Inc. EHT-110-01-SM-D-SM-LC-K	Shrouded - 4 Wall	Male Pin	Board Lock Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	20	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount	All
Samtec Inc. EHT-125-01-F-D-SM	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	50	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Surface Mount	All
Samtec Inc. EHT-125-01-L-D-SM-SR-K-TR	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place Strain Relief	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	50	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	15 µin	2	Surface Mount	All
Samtec Inc. EHT-113-01-F-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	26	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Through Hole	All	0.114 in
