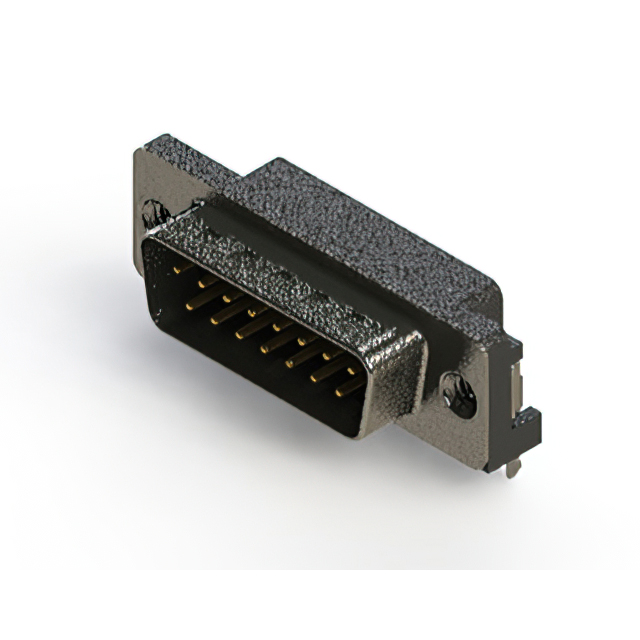

Specification	623-015-361-532

Backset Spacing	0.197 in
Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder

623-015 Series

Part	Contact Type	Current Rating (Per Contact)	Termination	Connector Type	Features	Mounting Type	Shell Material	Finish	Shell Size	Connector Layout	Number of Rows	Connector Style	Contact Finish Thickness	Number of Positions	Contact Finish	Flange Feature	Backset Spacing	Material Flammability Rating	Dielectric Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 623-015-661-531	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	30 µin	15	Gold	Housing Shell (Unthreaded)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-261-532	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	0	15	Gold	Housing Shell (4-40)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	125 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 623-015-661-535	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	30 µin	15	Gold	Housing Shell (M3)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-661-035	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	30 µin	15	Gold	Housing Shell (M3)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-261-032	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	0	15	Gold	Housing Shell (4-40)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 623-015-661-033	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	30 µin	15	Gold	Female Screwlock (4-40) Mating Side	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-361-031	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	15 µin	15	Gold	Housing Shell (Unthreaded)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-361-532	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	15 µin	15	Gold	Housing Shell (4-40)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 623-015-261-033	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	0	15	Gold	Female Screwlock (4-40) Mating Side	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 623-015-361-032	Signal	3 A	Solder	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	2	A DA	2	D-Sub	15 µin	15	Gold	Housing Shell (4-40)	0.197 in	UL94 V-0	Polyester Thermoplastic	Black	85 °C	-55 °C	Copper Alloy
