623-015-261-032

Active

EDAC Inc.

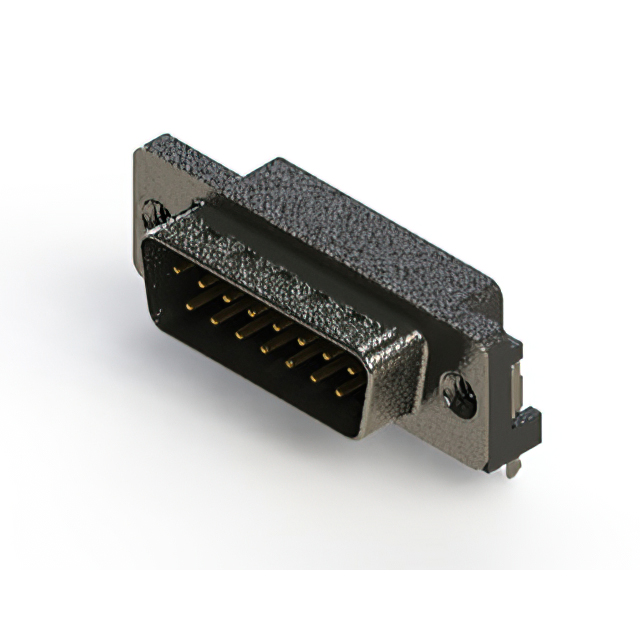

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Datasheet

623-015-261-032

Active

EDAC Inc.

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	623-015-261-032

Backset Spacing	0.197 in
Backset Spacing	5 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

623-015 Series

Part	Dielectric Material	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Contact Material	Color	Number of Positions	Features	Connector Type	Mounting Type	Contact Type	Current Rating (Amps)	Material Flammability Rating	Number of Rows	Shell Size, Connector Layout	Shell Material, Finish	Termination	Contact Finish	Contact Finish Thickness
EDAC Inc. 623-015-661-531	Polyester Thermoplastic	Housing/Shell (Unthreaded)	D-Sub	0.76 Ám	30 Áin	-55 °C	125 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-261-532	Polyester Thermoplastic	Housing/Shell (4-40)	D-Sub			-55 °C	125 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold	Flash
EDAC Inc. 623-015-661-535	Polyester Thermoplastic	Housing/Shell (M3)	D-Sub	0.76 Ám	30 Áin	-55 °C	125 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-661-035	Polyester Thermoplastic	Housing/Shell (M3)	D-Sub	0.76 Ám	30 Áin	-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-261-032	Polyester Thermoplastic	Housing/Shell (4-40)	D-Sub			-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold	Flash
EDAC Inc. 623-015-661-033	Polyester Thermoplastic	Female Screwlock (4-40) Mating Side	D-Sub	0.76 Ám	30 Áin	-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-361-031	Polyester Thermoplastic	Housing/Shell (Unthreaded)	D-Sub	0.38 µm	15 µin	-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-361-532	Polyester Thermoplastic	Housing/Shell (4-40)	D-Sub	0.38 µm	15 µin	-55 °C	125 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold
EDAC Inc. 623-015-261-033	Polyester Thermoplastic	Female Screwlock (4-40) Mating Side	D-Sub			-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold	Flash
EDAC Inc. 623-015-361-032	Polyester Thermoplastic	Housing/Shell (4-40)	D-Sub	0.38 µm	15 µin	-55 °C	85 °C	0.197 in	5 mm	Copper Alloy	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug	Board Edge Right Angle Through Hole	Signal	3 A	UL94 V-0	2	2	Nickel Plated Steel	Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 2.89
