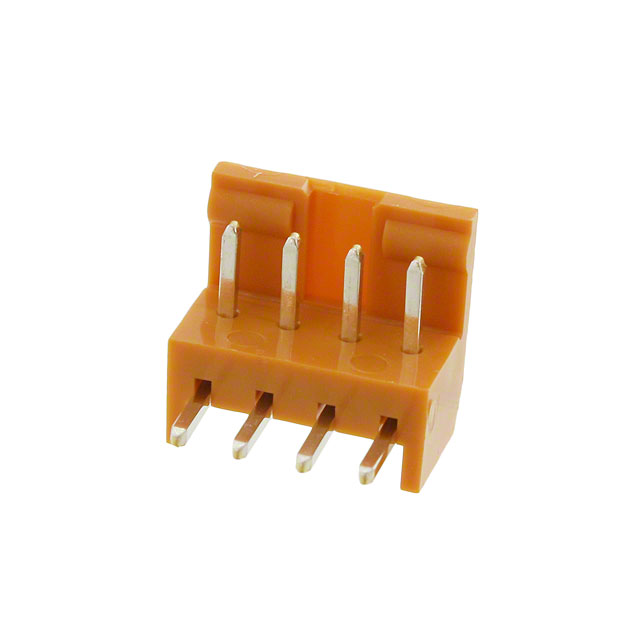

IL-G-4P-S3L2-SA

Active

JAE Electronics

CONN HEADER R/A 4POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

IL-G-4P-S3L2-SA

Active

JAE Electronics

CONN HEADER R/A 4POS 2.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL-G-4P-S3L2-SA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

IL-G-4P Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Fastening Type	Connector Type	Contact Finish - Post	Mated Stacking Heights	Style	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Number of Rows	Insulation Color	Contact Shape	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Material	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
JAE Electronics IL-G-4P-S3T2-SA-1	All	0.28 in	7.1 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header	Gold	10 mm	Board to Cable/Wire	Gold	4	UL94 V-0	1	Brown	Square	Through Hole	3.5 mm	0.138 in	Brass	0.378 in	9.6 mm
JAE Electronics IL-G-4P-S3L2-SA	All	0.236 in	6 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header	Tin		Board to Cable/Wire		4	UL94 V-0	1	Brown	Square	Through Hole Right Angle	3.5 mm	0.138 in	Brass
JAE Electronics IL-G-4P-S3L2-SB				3 A			85 °C	-40 °C	Shrouded - 1 Wall		2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6		Friction Lock	Header			Board to Cable/Wire		4	UL94 V-0	1		Square	Through Hole Right Angle			Brass
JAE Electronics IL-G-4P-S3L2-SA-1	All	0.236 in	6 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header			Board to Cable/Wire	Gold	4	UL94 V-0	1	Brown	Square	Through Hole Right Angle	3.5 mm	0.138 in	Brass			0.099 µm	3.9 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		10	$ 0.56
		100	$ 0.46
		500	$ 0.40
		1000	$ 0.33
		5000	$ 0.29
		10000	$ 0.27

Description

General part information

IL-G-4P Series

Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
