IL-G-4P-S3T2-SA-1

Active

JAE Electronics

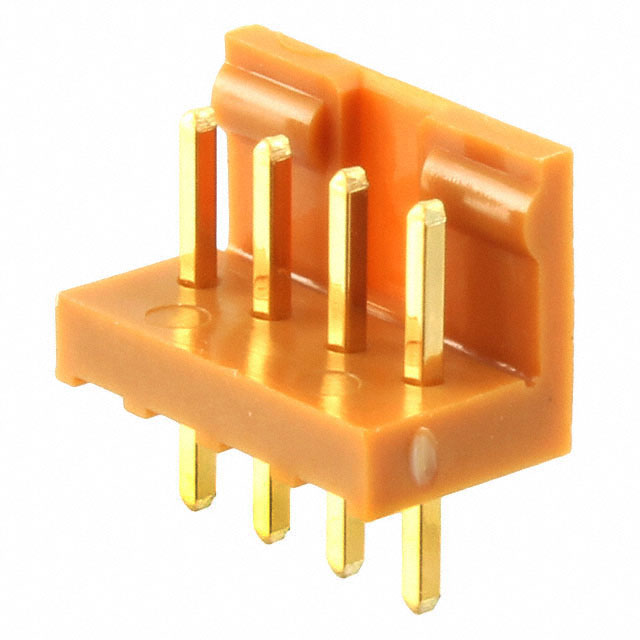

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IL-G-4P-S3T2-SA-1

Active

JAE Electronics

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL-G-4P-S3T2-SA-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	10 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.378 in
Overall Contact Length	9.6 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

IL-G-4P Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Fastening Type	Connector Type	Contact Finish - Post	Mated Stacking Heights	Style	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Number of Rows	Insulation Color	Contact Shape	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Material	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
JAE Electronics IL-G-4P-S3T2-SA-1	All	0.28 in	7.1 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header	Gold	10 mm	Board to Cable/Wire	Gold	4	UL94 V-0	1	Brown	Square	Through Hole	3.5 mm	0.138 in	Brass	0.378 in	9.6 mm
JAE Electronics IL-G-4P-S3L2-SA	All	0.236 in	6 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header	Tin		Board to Cable/Wire		4	UL94 V-0	1	Brown	Square	Through Hole Right Angle	3.5 mm	0.138 in	Brass
JAE Electronics IL-G-4P-S3L2-SB				3 A			85 °C	-40 °C	Shrouded - 1 Wall		2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6		Friction Lock	Header			Board to Cable/Wire		4	UL94 V-0	1		Square	Through Hole Right Angle			Brass
JAE Electronics IL-G-4P-S3L2-SA-1	All	0.236 in	6 mm	3 A	4 mm	0.157 in	85 °C	-40 °C	Shrouded - 1 Wall	Solder	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Male Pin	Friction Lock	Header			Board to Cable/Wire	Gold	4	UL94 V-0	1	Brown	Square	Through Hole Right Angle	3.5 mm	0.138 in	Brass			0.099 µm	3.9 µin
