MA7CAP1700-S2

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 17POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade +1

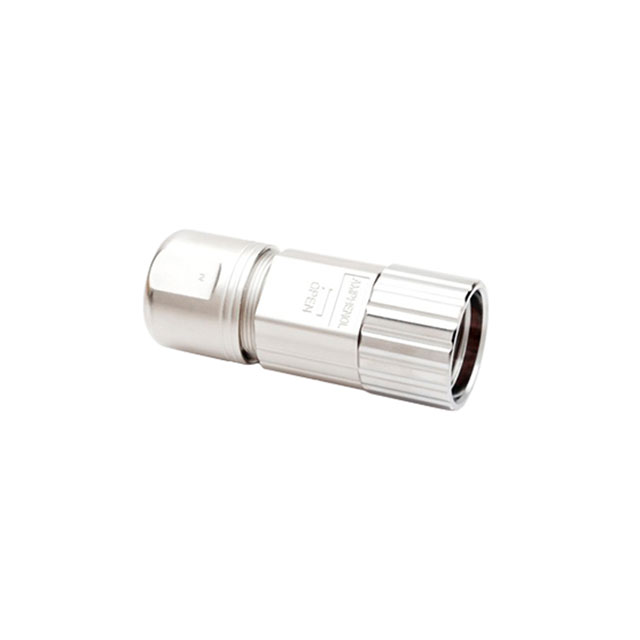

MA7CAP1700-S2

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 17POS INLINE

Deep-Dive with AI

DocumentsDatasheet MotionGrade +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA7CAP1700-S2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA7CAP Series

Part	Shell Size - Insert	Termination	Voltage Rating	Color	Shell Material	Shell Finish	Contact Finish - Mating	Shielding	Primary Material	Number of Positions	Features	Orientation	Ingress Protection	Current Rating (Amps)	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Applications	Backshell Material, Plating	Fastening Type	Material Flammability Rating	Contact Material	Number of Positions	Type	Contact Type	Housing Color	Contact Size	Note	Contact Shape
Amphenol Sine Systems Corp MA7CAP1200-S2-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1200S-S3-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1600S-S2-KIT	M23-16	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	P	IP67 - Dust Tight Waterproof	9 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	0.433 in	0.295 in	7.5 mm	11 mm	Communication Systems Industrial Medical	Nickel Zinc Die Cast	Push-Twist	UL94 V-0	Copper Alloy	16
Amphenol Sine Systems Corp MA7CAP1600-S3-KIT	M23-16	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	P	IP67 - Dust Tight Waterproof	9 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	0.591 in	0.433 in	11 mm	15 mm	Communication Systems Industrial Medical	Nickel Zinc Die Cast	Push-Twist	UL94 V-0	Copper Alloy	16
Amphenol Sine Systems Corp MA7CAP1700S-S2-KIT	M23-17	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	9 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1700-S1-KIT	M23-17	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	9 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1700-S2	M23-17				Zinc Die Cast	Nickel		Shielded			Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof		Plug Housing	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6								UL94 V-0			For Female Sockets or Male Pins	Crimp	Silver	1 mm	Contacts Not Included	Circular
Amphenol Sine Systems Corp MA7CAP1200S-S2-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1200S-S1-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1600-S1	M23-16				Zinc Die Cast	Nickel		Shielded			Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof		Plug Housing	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6								UL94 V-0		16	For Female Sockets or Male Pins	Crimp	Silver	1 mm	Contacts Not Included	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.79
		10	$ 19.88
		25	$ 18.01
		50	$ 16.74
		100	$ 15.59
		250	$ 14.24
		500	$ 13.32

Description

General part information

MA7CAP Series

17 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
