MA7CAP1700-S1-KIT

Active

Amphenol Sine Systems Corp

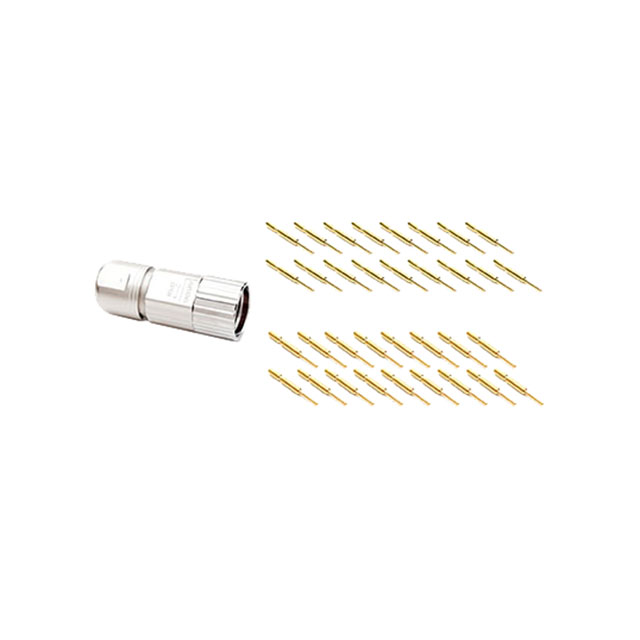

CONN PLUG MALE 17POS GOLD CRIMP

Deep-Dive with AI

DocumentsMotionGrade Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA7CAP1700-S1-KIT

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	9 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Termination	Crimp
Voltage Rating	125 VAC

MA7CAP Series

Part	Shell Size - Insert	Termination	Voltage Rating	Color	Shell Material	Shell Finish	Contact Finish - Mating	Shielding	Primary Material	Number of Positions	Features	Orientation	Ingress Protection	Current Rating (Amps)	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Applications	Backshell Material, Plating	Fastening Type	Material Flammability Rating	Contact Material	Number of Positions	Type	Contact Type	Housing Color	Contact Size	Note	Contact Shape
Amphenol Sine Systems Corp MA7CAP1200-S2-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1200S-S3-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1600S-S2-KIT	M23-16	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	P	IP67 - Dust Tight Waterproof	9 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	0.433 in	0.295 in	7.5 mm	11 mm	Communication Systems Industrial Medical	Nickel Zinc Die Cast	Push-Twist	UL94 V-0	Copper Alloy	16
Amphenol Sine Systems Corp MA7CAP1600-S3-KIT	M23-16	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	P	IP67 - Dust Tight Waterproof	9 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	0.591 in	0.433 in	11 mm	15 mm	Communication Systems Industrial Medical	Nickel Zinc Die Cast	Push-Twist	UL94 V-0	Copper Alloy	16
Amphenol Sine Systems Corp MA7CAP1700S-S2-KIT	M23-17	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	9 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1700-S1-KIT	M23-17	Crimp	125 VAC	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal		Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	9 A	Male Pins Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1700-S2	M23-17				Zinc Die Cast	Nickel		Shielded			Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof		Plug Housing	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6								UL94 V-0			For Female Sockets or Male Pins	Crimp	Silver	1 mm	Contacts Not Included	Circular
Amphenol Sine Systems Corp MA7CAP1200S-S2-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1200S-S1-KIT	M23-12	Crimp	160 V	Silver	Zinc Die Cast	Nickel	Gold	Shielded	Metal	12	Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof	10 A	Female Sockets Plug	Free Hanging (In-Line)	-20 C	130 °C
Amphenol Sine Systems Corp MA7CAP1600-S1	M23-16				Zinc Die Cast	Nickel		Shielded			Backshell Coupling Nut	N	IP67 - Dust Tight Waterproof		Plug Housing	Free Hanging (In-Line)	-20 C	130 °C	Polyamide (PA66) Nylon 6/6								UL94 V-0		16	For Female Sockets or Male Pins	Crimp	Silver	1 mm	Contacts Not Included	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.12
		10	$ 46.91
		30	$ 45.10
		50	$ 43.60
		100	$ 41.19
		250	$ 39.99

Description

General part information

MA7CAP Series

17 Position Circular Connector Plug, Male Pins Crimp
