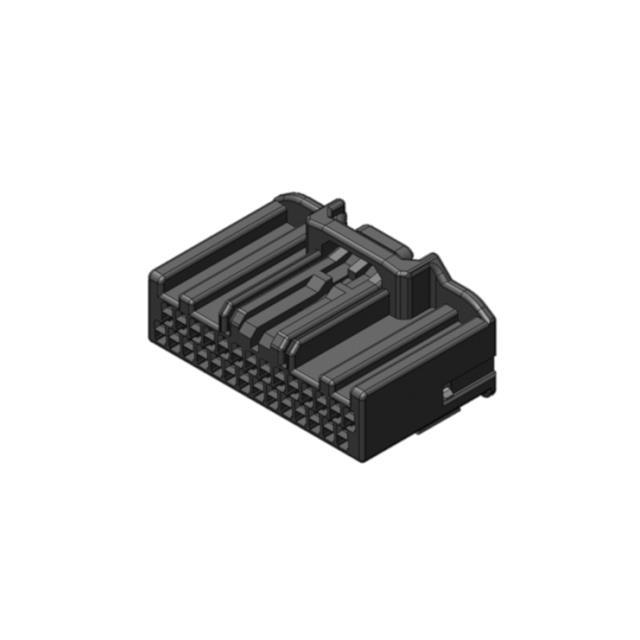

MX84B032SF2

Active

JAE Electronics

CONN RCPT HSG 32POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX84B032SF2

Active

JAE Electronics

CONN RCPT HSG 32POS 2.20MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX84B032SF2

Color	Aqua
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

MX84B Series

Part	Material Flammability Rating	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Shrouding	Features	Contact Shape	Contact Material	Insulation Color	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Insulation Height	Insulation Height	Connector Type	Number of Rows	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Note	Color	Pitch [x]	Pitch [x]	Insulation Material	Fastening Type	Contact Termination	Row Spacing [x]	Row Spacing [x]	Applications
JAE Electronics MX84B020NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm	20	85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in
JAE Electronics MX84B028SF1														28	85 °C	-40 °C					Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Black	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	0.118 in	3 mm
JAE Electronics MX84B024NF2		All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Aqua	Tin	0.087 in	2.2 mm	24			Board to Cable/Wire		3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in
JAE Electronics MX84B032NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm		85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp
JAE Electronics MX84B032SF2							Retainer														Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Aqua	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Lock	Crimp	0.118 in	3 mm
JAE Electronics MX84B024SF1														24	85 °C	-40 °C					Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Black	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	0.118 in	3 mm
JAE Electronics MX84B032NF2	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Aqua	Tin	0.087 in	2.2 mm		85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp
JAE Electronics MX84B024NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm	24	85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp				Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.55
		10	$ 3.01
		25	$ 2.83
		50	$ 2.69
		100	$ 2.56
		360	$ 2.34
		720	$ 2.23
		1080	$ 2.17
		2520	$ 2.04

Description

General part information

MX84B Series

32 Rectangular Connectors - Housings Receptacle Aqua 0.087" (2.20mm)
