MX84B020NF1

Active

JAE Electronics

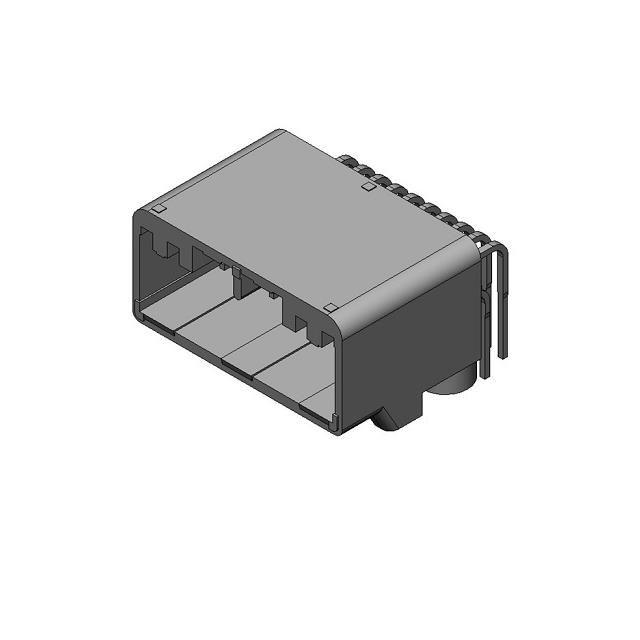

CONN PIN HEADER 20 POS R/A PHEV/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX84B020NF1

Active

JAE Electronics

CONN PIN HEADER 20 POS R/A PHEV/

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX84B020NF1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Features	Mounting Flange
Insulation Color	Black
Insulation Height	15.9 mm
Insulation Height	0.626 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

MX84B Series

Part	Material Flammability Rating	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Shrouding	Features	Contact Shape	Contact Material	Insulation Color	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Insulation Height	Insulation Height	Connector Type	Number of Rows	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Note	Color	Pitch [x]	Pitch [x]	Insulation Material	Fastening Type	Contact Termination	Row Spacing [x]	Row Spacing [x]	Applications
JAE Electronics MX84B020NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm	20	85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in
JAE Electronics MX84B028SF1														28	85 °C	-40 °C					Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Black	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	0.118 in	3 mm
JAE Electronics MX84B024NF2		All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Aqua	Tin	0.087 in	2.2 mm	24			Board to Cable/Wire		3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in
JAE Electronics MX84B032NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm		85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp
JAE Electronics MX84B032SF2							Retainer														Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Aqua	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Lock	Crimp	0.118 in	3 mm
JAE Electronics MX84B024SF1														24	85 °C	-40 °C					Free Hanging (In-Line)			Receptacle	2	Female Socket			Contacts Not Included	Black	0.087 in	2.2 mm	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	0.118 in	3 mm
JAE Electronics MX84B032NF2	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Aqua	Tin	0.087 in	2.2 mm		85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp
JAE Electronics MX84B024NF1	UL94 V-0	All	Solder	7.7 mm	0.303 in	Shrouded - 4 Wall	Mounting Flange	Square	Brass	Black	Tin	0.087 in	2.2 mm	24	85 °C	-40 °C	Board to Cable/Wire	3 A	3.2 mm	0.126 in	Through Hole Right Angle	15.9 mm	0.626 in	Header	2	Male Pin	3 mm	0.118 in						Locking Ramp				Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.09
		64	$ 2.54
		128	$ 2.44

Description

General part information

MX84B Series

Connector Header Through Hole, Right Angle 20 position 0.087" (2.20mm)
