45-1131.1120.000.101

Active

EAO

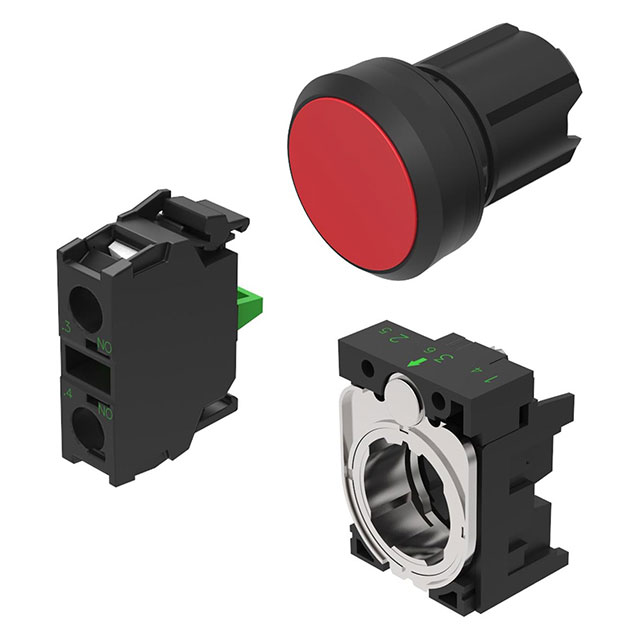

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45-1131.1120.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.88
		10	$ 29.93
		25	$ 28.53
		50	$ 26.62
		100	$ 25.58
		250	$ 23.84

Description

General part information

45-1131 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-1131.1120.000.101	45-1131 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO, SPST-NC
Color - Actuator/Cap	Red	White, Black, Red, Green, Blue, Yellow, Clear
Current Rating (Amps)	10 A	10 A
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

45-1131 Series

SWITCH PUSH SPST-NO 10A 500V

Part	Circuit	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Type	Voltage Rating - AC	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Switch Function	Mechanical Life	Actuator Type
EAO 45-1131.3190.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	White	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1210.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	On-Mom	10000000 Cycles	Button, Round
EAO 45-1131.2220.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	On-Mom	10000000 Cycles	Button, Round
EAO 45-1131.3120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1110.000.401	SPST-NO	10 A	Spring Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2120.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	On-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1190.000.401	SPST-NO	10 A	Spring Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	White	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2110.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	On-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
