45-1131.3120.000.101

Active

EAO

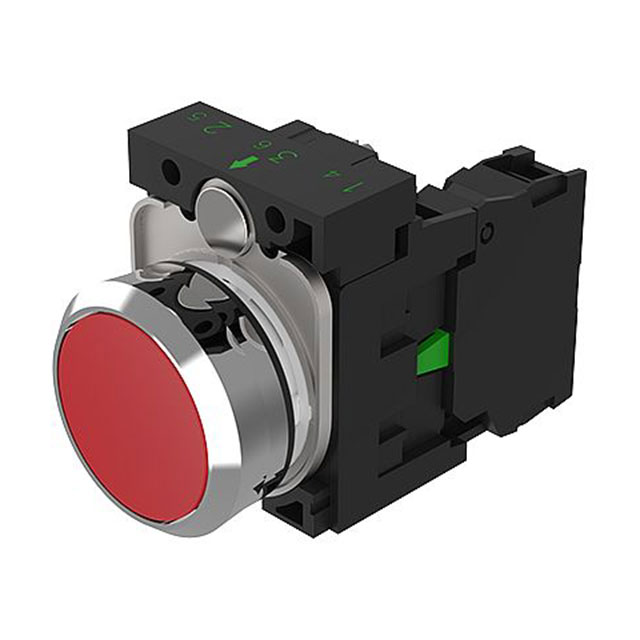

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

Documents45 Datasheet Datasheet +2

45-1131.3120.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

Documents45 Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.41
		10	$ 33.14
		25	$ 31.24
		50	$ 29.88
		100	$ 28.57
		250	$ 26.92

Description

General part information

45-1131 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Documents

Technical documentation and resources

45 Datasheet

Datasheet

45-2134.3140.000_Catalog

61-1100.0_Catalog

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-1131.3120.000.101	45-1131 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO, SPST-NC
Color - Actuator/Cap	Red	White, Black, Red, Green, Blue, Yellow, Clear
Current Rating (Amps)	10 A	10 A
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

45-1131 Series

SWITCH PUSH SPST-NO 10A 500V

Part	Circuit	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Type	Voltage Rating - AC	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Switch Function	Mechanical Life	Actuator Type
EAO 45-1131.3190.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	White	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1210.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	On-Mom	10000000 Cycles	Button, Round
EAO 45-1131.2220.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	On-Mom	10000000 Cycles	Button, Round
EAO 45-1131.3120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1110.000.401	SPST-NO	10 A	Spring Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2120.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	On-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1190.000.401	SPST-NO	10 A	Spring Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	White	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.2110.000.102	SPST-NC	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Black	No Marking	On-Mom	10000000 Cycles	Button, Flush, Round
EAO 45-1131.1120.000.101	SPST-NO	10 A	Screw Terminal	70 °C	-25 °C	IP66, IP67, IP69K	Panel Mount, Front	Standard	500 V	500 V	Red	No Marking	Off-Mom	10000000 Cycles	Button, Flush, Round
