1212 005U1000

Obsolete

Belden Inc.

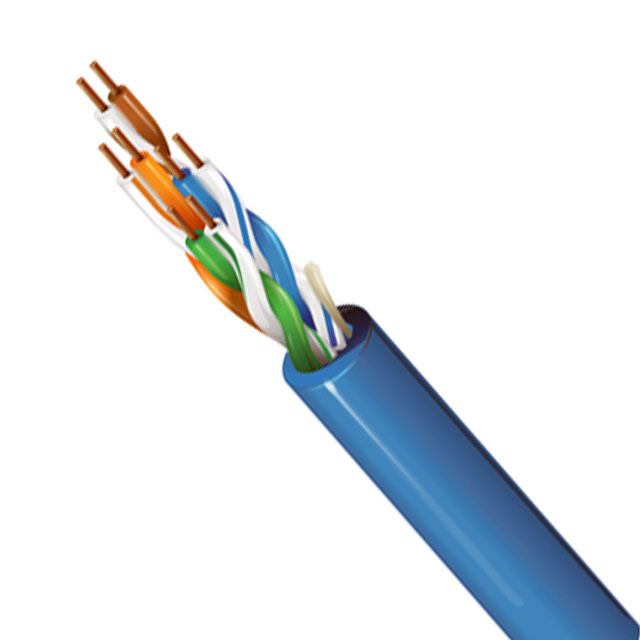

CAT5E+ 4PR U/UTP CMR BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1212 005U1000

Obsolete

Belden Inc.

CAT5E+ 4PR U/UTP CMR BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1212 Series

8 (4 Pair) Conductor Multi-Pair, Cat5e Cable Green 24 AWG 1000.0' (304.8m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1212 005U1000	1212 Series

	-	-
Cable Type	Multi-Pair, Cat5e	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)	Polyolefin (PO)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Features	Rip Cord	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.206 "	0.206 "
Jacket (Insulation) Diameter [diameter]	5.23 mm	5.23 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Green	Green, Blue, Yellow, Orange, Gray, Black
Length	1000 ft	1000 - 2500 ft
Length	304.8 m	304.8 - 762 m
Number of Conductors	8	8
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Ratings	UL Style CMR	UL Style CMR
Usage	Network	Network
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

1212 Series

CAT5E+ 4PR U/UTP CMR BOX

Part	Length	Length	Conductor Material	Conductor Strand	Conductor Insulation	Ratings	Cable Type	Jacket Color	Usage	Features	Voltage	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1212 005U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Green	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 006U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Blue	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 0062500	2500 ft	762 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Blue	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 004U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Yellow	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 003U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Orange	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 0092500
Belden Inc. 1212 008U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Gray	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
Belden Inc. 1212 010U1000	1000 ft	304.8 m	Copper, Bare	Solid	Polyolefin (PO)	UL Style CMR	Multi-Pair, Cat5e	Black	Network	Rip Cord	300 V	8	Poly-Vinyl Chloride (PVC), Riser	24 AWG	0.206 "	5.23 mm	-25 °C	75 ░C
