M1WXK-5036R

Active

3M (TC)

IDC CABLE - MPL50K/MC50M/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3302 Series Datasheet +1

M1WXK-5036R

Active

3M (TC)

IDC CABLE - MPL50K/MC50M/X

Deep-Dive with AI

Documents3302 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1WXK-5036R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1WXK Series

Part	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Color	Number of Rows	Shielding	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable
3M (TC) M1WXK-3436R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	34	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-3636R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	36	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-4040K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	40	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-4036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	40	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-6436J	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	64		2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-3440K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	34	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-5036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	50	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-6440K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	64	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-1036J	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	10		2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-1036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	10	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.91
		10	$ 24.63
		25	$ 22.32
		50	$ 20.76
		100	$ 19.35
		250	$ 17.68
		500	$ 16.56

Description

General part information

M1WXK Series

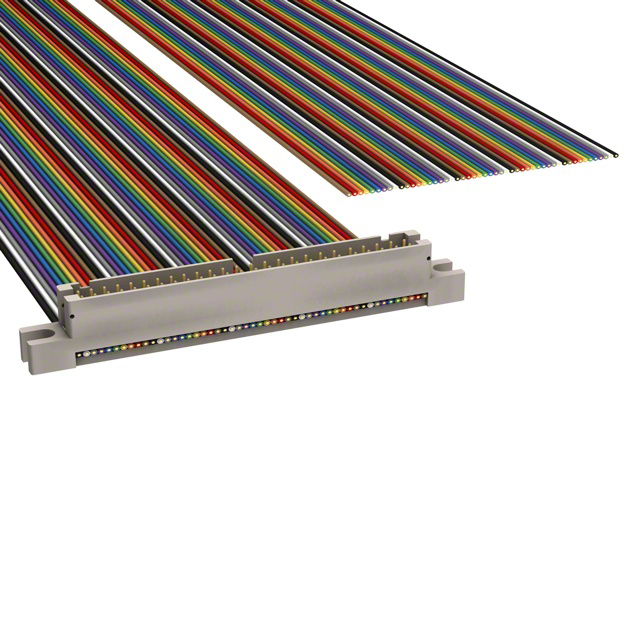

50 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3302 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
