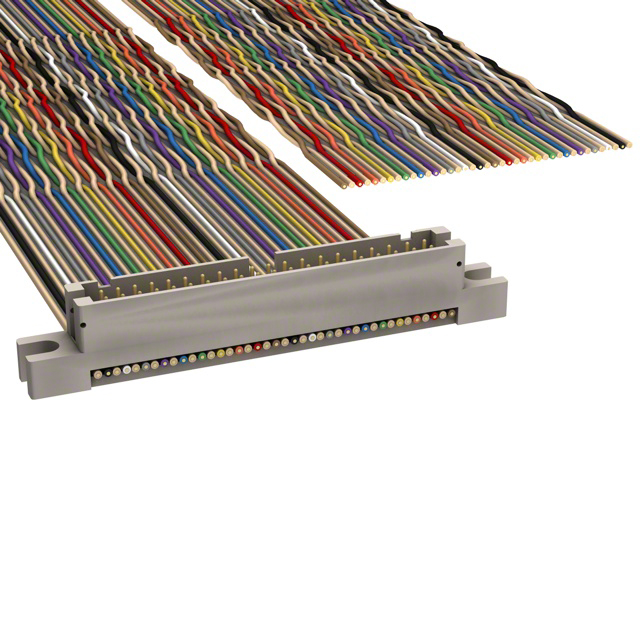

M1WXK-4040K

Active

3M (TC)

IDC CABLE - MPL40K/MC40F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

M1WXK-4040K

Active

3M (TC)

IDC CABLE - MPL40K/MC40F/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1WXK-4040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Polarizing Key
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1WXK Series

Part	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Color	Number of Rows	Shielding	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable
3M (TC) M1WXK-3436R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	34	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-3636R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	36	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-4040K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	40	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-4036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	40	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-6436J	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	64		2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-3440K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	34	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-5036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	50	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-6440K	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	64	Multiple Twisted Pair (Flat)	2	Unshielded	3.34 ft	1.02 m	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-1036J	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	10		2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm
3M (TC) M1WXK-1036R	IDC	0.76 Ám	30 Áin	Plug to Cable	Gold	10	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	Flange Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.43
		10	$ 25.82
		25	$ 23.40
		50	$ 21.77
		100	$ 20.29
		250	$ 18.54
		500	$ 17.37

Description

General part information

M1WXK Series

40 Position Cable Assembly Rectangular Plug to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet
