MF-USMF075-2
ActiveBourns Inc.
PTC RESET FUSE 6V 750MA 1210
Deep-Dive with AI
Search across all available documentation for this part.
MF-USMF075-2
ActiveBourns Inc.
PTC RESET FUSE 6V 750MA 1210
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MF-USMF075-2 |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) [Max] | 750 mA |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 1.5 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Concave, 1210 (3225 Metric) |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 70 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 450 mOhms |
| Size / Dimension [x] | 0.127 in |
| Size / Dimension [x] | 3.22 mm |
| Size / Dimension [y] | 0.102 " |
| Size / Dimension [y] | 2.58 mm |
| Thickness (Max) [Max] | 0.033 in |
| Thickness (Max) [Max] | 0.85 mm |
| Time to Trip | 100 ms |
| Type | Polymeric |
| Voltage - Max [Max] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 5 | $ 0.64 | |||
| 10 | $ 0.62 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 5 | $ 0.64 | |||
| 10 | $ 0.62 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.14 | |||
| 15000 | $ 0.13 | |||
Description
General part information

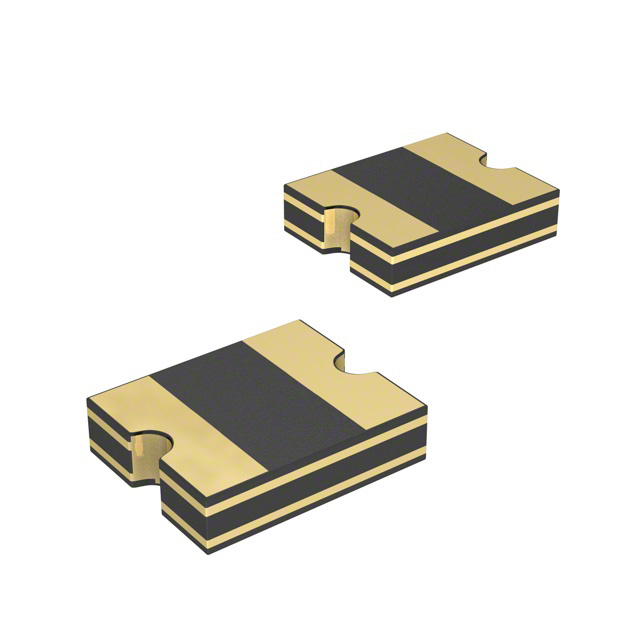

MF-USMF Series
Polymeric PTC Resettable Fuse 6V 750 mA Ih Surface Mount 1210 (3225 Metric), Concave
