MF-USMFLAB

Active

Bourns Inc.

FUSE KIT PTC RST 0.05-1.5A 40PC

Search across all available documentation for this part.

Active

Bourns Inc.

FUSE KIT PTC RST 0.05-1.5A 40PC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current - Trip (It)	Voltage - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Qualification	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Hold (Ih) (Max) [Max]	Approval Agency	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Voltage Rating [Max]	Voltage Rating [Min]	Kit Type	Packages Included	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Quantity
Bourns Inc. MF-USMF035-2	Surface Mount	750 mA	6 V	0.033 in	0.85 mm	200 mOhms	AEC-Q200	40 A	0.102 "	0.127 in	2.58 mm	3.22 mm	350 mA	cURus TUV	Automotive	85 °C	-40 °C	Polymeric	1210 (3225 Metric) Concave	0.2 s
Bourns Inc. MF-USMF075-2	Surface Mount	1.5 A	6 V	0.033 in	0.85 mm	70 mOhms	AEC-Q200	40 A	0.102 "	0.127 in	2.58 mm	3.22 mm	750 mA	cURus TUV	Automotive	85 °C	-40 °C	Polymeric	1210 (3225 Metric) Concave	100 ms	450 mOhms
Bourns Inc. MF-USMFLAB	Surface Mount																					30 V	6 VDC	PTC Resettable	1210 (3225 Metric)	1.5 A	0.05 A	40 Pieces

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	5	$ 30.30

General part information

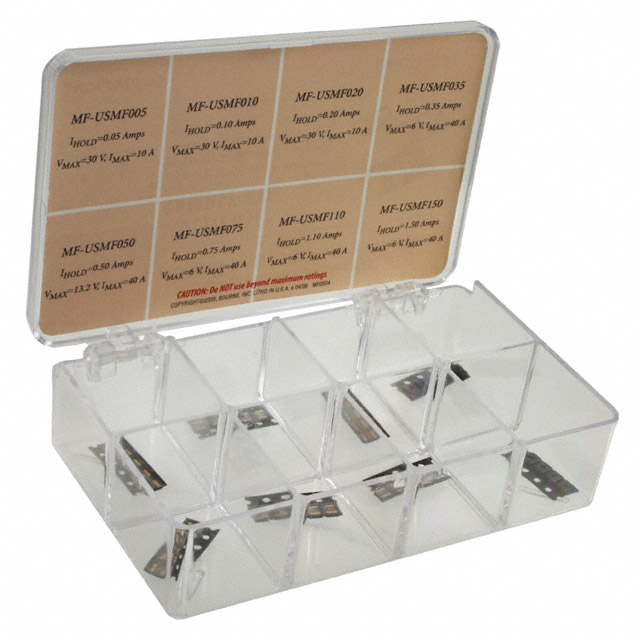

PTC Resettable Fuse Kit 0.05 ~ 1.5A 6 ~ 30VDC Surface Mount 40 Pieces (8 Values - 5 Each)
