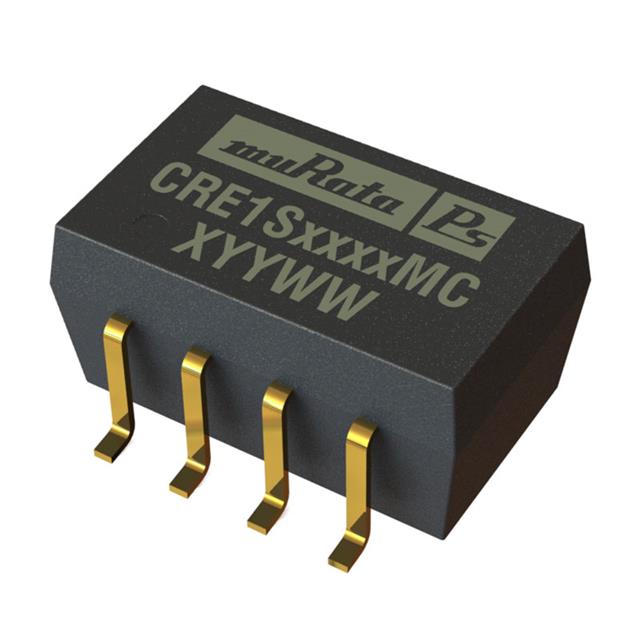

CRE1S0505MC-R
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
CRE1S0505MC-R
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CRE1S0505MC-R | CRE1S Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 67 - 200 mA |
| Efficiency | - | 68 - 80 % |
| Mounting Type | - | Surface Mount, Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 5 Leads, 4-SIP Module |
| Package / Case | - | 14-SMD Module |
| Size / Dimension | - | 6.1 - 10.7 mm |
| Size / Dimension | - | 0.26 - 0.39 " |
| Size / Dimension | - | 11.5 - 12.7 mm |
| Size / Dimension | - | 6.6 - 10 mm |
| Size / Dimension | - | 0.45 - 0.5 in |
| Size / Dimension | - | 0.24 - 0.42 " |
| Standard Number | - | 60950-1 |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 5.5 - 26.4 V |
| Voltage - Input (Min) | - | 4.5 - 21.6 V |
| Voltage - Isolation | - | 1000 - 3000 V |
| Voltage - Output 1 | - | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.21 | |
| 5 | $ 3.19 | |||
| 10 | $ 3.17 | |||
| 25 | $ 3.14 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.72 | |||
| Digi-Reel® | 1 | $ 3.21 | ||
| 5 | $ 3.19 | |||
| 10 | $ 3.17 | |||
| 25 | $ 3.14 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.72 | |||
| Tape & Reel (TR) | 500 | $ 2.54 | ||
| 1000 | $ 2.38 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.54 | |
| 10 | $ 3.49 | |||
| 25 | $ 3.46 | |||
| 50 | $ 3.38 | |||
| 100 | $ 3.22 | |||
| 250 | $ 3.03 | |||
CRE1S Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
| Part | Mounting Type | Type | Applications | Number of Outputs | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case [Max] | Efficiency | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Isolation | Voltage - Output 1 | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CRE1S0505MC-R | Surface Mount | Isolated Module | ITE (Commercial) | 1 | 200 mA | 85 °C | -40 °C | 5 Leads | 14-SMD Module | 68 % | 60950-1 | 7.7 mm | 0.26 " | 12.7 mm | 6.6 mm | 0.5 in | 0.3 " | 1000 V | 5 V | 4.5 V | 5.5 V |
Murata Power Solutions Inc. CRE1S0505SC | |||||||||||||||||||||
Murata Power Solutions Inc. CRE1S1212SC | Through Hole | Isolated Module | ITE (Commercial) | 1 | 83 mA | 85 °C | -40 °C | 4-SIP Module | 80 % | 60950-1 | 6.1 mm | 0.39 in | 11.5 mm | 10 mm | 0.45 in | 0.24 " | 1000 V | 12 V | 10.8 V | 13.2 V | |
Murata Power Solutions Inc. CRE1S0505MEC | Surface Mount | Isolated Module | ITE (Commercial) | 1 | 200 mA | 85 °C | -40 °C | 5 Leads | 14-SMD Module | 60950-1 | 10.7 mm | 0.28 " | 12.7 mm | 7.1 mm | 0.5 in | 0.42 " | 1000 V | 5 V | 4.5 V | 5.5 V | |
Murata Power Solutions Inc. CRE1S0505S3C | Through Hole | Isolated Module | ITE (Commercial) | 1 | 200 mA | 85 °C | -40 °C | 4-SIP Module | 77 % | 60950-1 | 6.1 mm | 0.3 " | 11.5 mm | 7.5 mm | 0.45 in | 0.24 " | 3000 V | 5 V | 4.5 V | 5.5 V | |
Murata Power Solutions Inc. CRE1S0505MC-R | |||||||||||||||||||||
Murata Power Solutions Inc. CRE1S0505MEC | |||||||||||||||||||||
Murata Power Solutions Inc. CRE1S2412SC | Through Hole | Isolated Module | ITE (Commercial) | 1 | 83 mA | 70 °C | 0 °C | 4-SIP Module | 80 % | 60950-1 | 6.1 mm | 0.39 in | 11.5 mm | 10 mm | 0.45 in | 0.24 " | 1000 V | 12 V | 21.6 V | 26.4 V | |
Murata Power Solutions Inc. CRE1S0505SC | Through Hole | Isolated Module | ITE (Commercial) | 1 | 200 mA | 85 °C | -40 °C | 4-SIP Module | 70 % | 60950-1 | 6.1 mm | 0.39 in | 11.5 mm | 10 mm | 0.45 in | 0.24 " | 1000 V | 5 V | 4.5 V | 5.5 V | |
Murata Power Solutions Inc. CRE1S1212SC |
Description
General part information
CRE1S Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
