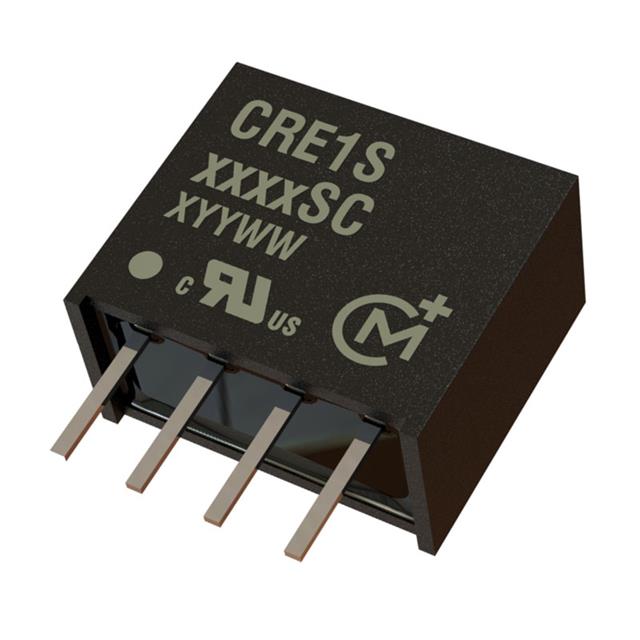

CRE1S2412SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

CRE1S2412SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRE1S2412SC	CRE1S Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	83 mA	67 - 200 mA
Efficiency	80 %	68 - 80 %
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	4-SIP Module	5 Leads, 4-SIP Module
Package / Case	-	14-SMD Module
Size / Dimension [x]	11.5 mm	11.5 - 12.7 mm
Size / Dimension [x]	0.45 in	0.45 - 0.5 in
Size / Dimension [y]	6.1 mm	6.1 - 10.7 mm
Size / Dimension [y]	0.24 "	0.24 - 0.42 "
Size / Dimension [z]	0.39 in	0.26 - 0.39 "
Size / Dimension [z]	10 mm	6.6 - 10 mm
Standard Number	60950-1	60950-1
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	5.5 - 26.4 V
Voltage - Input (Min) [Min]	21.6 V	4.5 - 21.6 V
Voltage - Isolation	1000 V	1000 - 3000 V
Voltage - Output 1	12 V	5 - 15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.20
		5	$ 3.18
		10	$ 3.16
		25	$ 3.13
		50	$ 3.05
		100	$ 2.90
		250	$ 2.71
		500	$ 2.53
		1000	$ 2.37
Newark	Each	25	$ 3.16
		50	$ 3.08
		100	$ 2.93
		250	$ 2.74

CRE1S Series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Mounting Type	Type	Applications	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [Max]	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. CRE1S0505MC-R	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module	68 %	60950-1	7.7 mm	0.26 "	12.7 mm	6.6 mm	0.5 in	0.3 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505SC
Murata Power Solutions Inc. CRE1S1212SC	Through Hole	Isolated Module	ITE (Commercial)	1	83 mA	85 °C	-40 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	12 V	10.8 V	13.2 V
Murata Power Solutions Inc. CRE1S0505MEC	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module		60950-1	10.7 mm	0.28 "	12.7 mm	7.1 mm	0.5 in	0.42 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505S3C	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		77 %	60950-1	6.1 mm	0.3 "	11.5 mm	7.5 mm	0.45 in	0.24 "	3000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505MC-R
Murata Power Solutions Inc. CRE1S0505MEC
Murata Power Solutions Inc. CRE1S2412SC	Through Hole	Isolated Module	ITE (Commercial)	1	83 mA	70 °C	0 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	12 V	21.6 V	26.4 V
Murata Power Solutions Inc. CRE1S0505SC	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		70 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S1212SC

Description

General part information

CRE1S Series

Isolated Module DC DC Converter 1 Output 12V 83mA 21.6V - 26.4V Input
