BQ24600EVM
ActiveEVAL MODULE FOR BQ24600
Deep-Dive with AI
Search across all available documentation for this part.

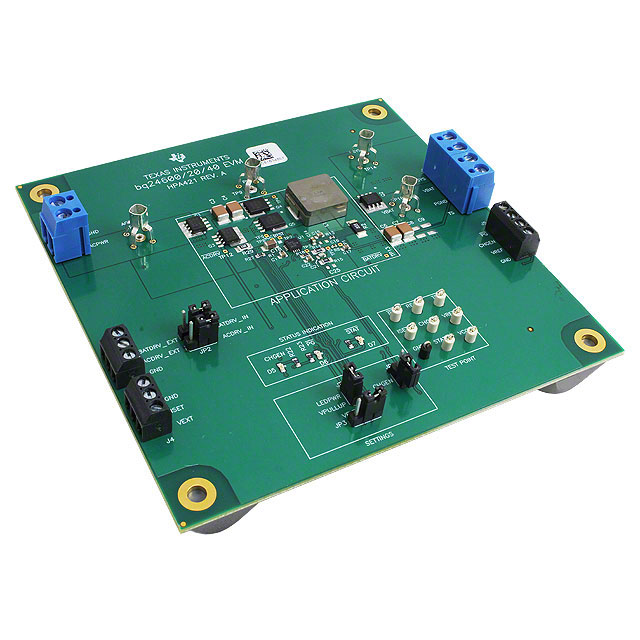

BQ24600EVM
ActiveEVAL MODULE FOR BQ24600
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24600EVM | BQ24600 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 14 V |
| Charge Current - Max | - | 10 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 6 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Primary Attributes | 26 V | 26 V |
| Primary Attributes | Multi Cell-Li-ion / Li-Polymer | Multi Cell-Li-ion / Li-Polymer |
| Programmable Features | - | Current |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 3.5 |
| Supplier Device Package | - | 3.5 |
| Supplier Device Package | - | 16-VQFN |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24600 | BQ24600 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
BQ24600 Series
Standalone 1-6 cell Buck battery charge controller
| Part | Fault Protection | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Battery Chemistry | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Max) [Max] | Charge Current - Max [Max] | Mounting Type | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Programmable Features | Current - Charging | Battery Pack Voltage [Max] | Package / Case | Utilized IC / Part | Embedded | Primary Attributes | Primary Attributes | Contents | Function | Type | Supplied Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24600RVAR | Over Current, Over Temperature, Over Voltage, Short Circuit | 3.5 | 3.5 | 16-VQFN | Lithium Ion/Polymer | 85 °C | -40 °C | 28 V | 10 A | Surface Mount | 6 | 1 | Current | Constant - Programmable | 14 V | 16-VFQFN Exposed Pad | |||||||||
Texas Instruments BQ24600RVAT | Over Current, Over Temperature, Over Voltage, Short Circuit | 3.5 | 3.5 | 16-VQFN | Lithium Ion/Polymer | 85 °C | -40 °C | 28 V | 10 A | Surface Mount | Current | Constant - Programmable | 14 V | 16-VFQFN Exposed Pad | |||||||||||
Texas Instruments BQ24600EVM | BQ24600 | 26 V | Multi Cell-Li-ion / Li-Polymer | Board(s) | Battery Charger | Power Management | Board(s) | On-Board LEDs |
Description
General part information
BQ24600 Series
The bq24600 is a highly integrated Li-ion or Li-polymer switch-mode battery-charge controller. It offers a constant-frequency synchronous PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, and charge status monitoring,
The bq24600 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum level. An internal charge timer provides a safety backup. The bq24600 automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low-quiescent-current sleep mode when the input voltage falls below the battery voltage.
The bq24600 is a highly integrated Li-ion or Li-polymer switch-mode battery-charge controller. It offers a constant-frequency synchronous PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, and charge status monitoring,
Documents
Technical documentation and resources
