MS3106F10SL-3S

Active

ITT Cannon, LLC

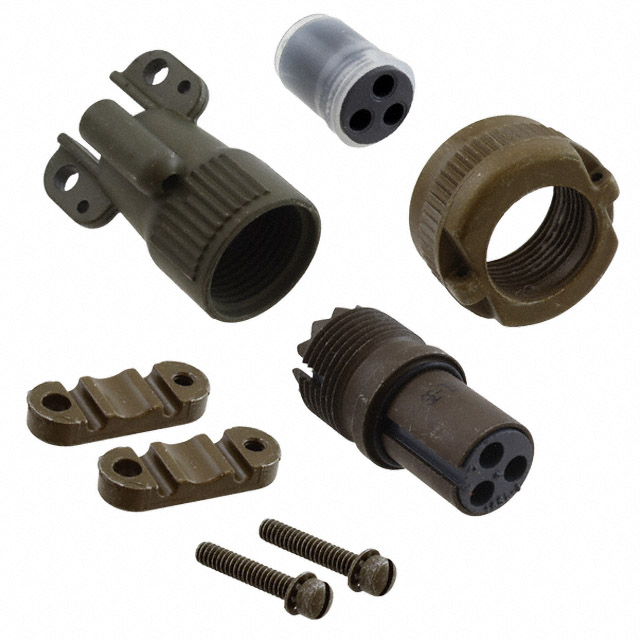

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MS3106F10SL-3S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 3 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F10SL-3S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-3
Voltage Rating	700 VDC, 500 VAC

MS3106F10 Series

Part	Ingress Protection	Voltage Rating	Qualification	Current Rating (Amps)	Shell Size - Insert	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Color	Shell Material	Contact Finish - Mating	Grade	Orientation	Shell Finish	Primary Material	Contact Material	Shell Size - Insert [custom]	Applications	Shielding	Insert Material
ITT Cannon, LLC MS3106F10SL-4S	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-4	Female Sockets Plug	2	-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10SL-3S	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-3	Female Sockets Plug		-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10SL-4SF187	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-4	Female Sockets Plug	2	-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10S2S	Environment Resistant		MIL-DTL-5015			Female Sockets Plug	1	-55 °C	125 °C	Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal	Copper Alloy	10S-2	Aviation Industrial Marine Military	Unshielded	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.23
		10	$ 37.59
		25	$ 35.24
		50	$ 33.56
		100	$ 31.96
		250	$ 29.96
Newark	Each	1	$ 55.60
		5	$ 51.90
		10	$ 48.18
		25	$ 42.52
		50	$ 39.69
		100	$ 39.27

Description

General part information

MS3106F10 Series

The MS3106F10SL3S is a 3-way Solder Plug is designed with silver-plated copper contacts, The MIL-C-5015 series connector has coupling thread and end bell with cable clamp. It is designed to operate in the extreme environmental conditions of high altitude, moisture, condensation and vibration.
