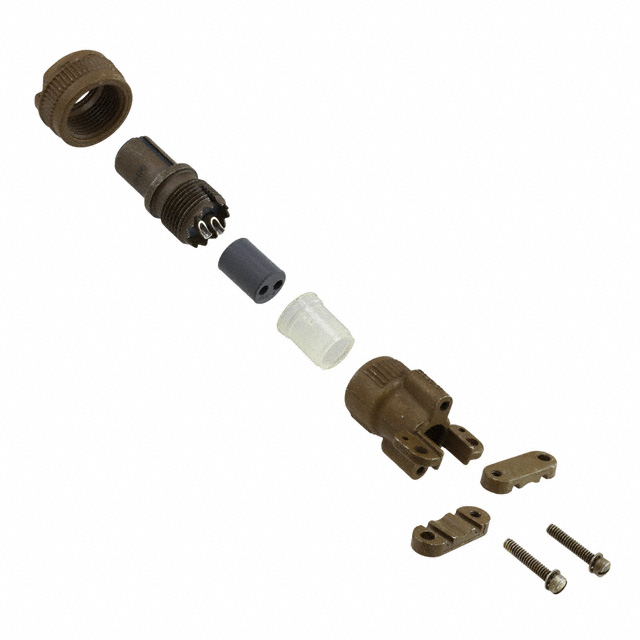

MS3106F10SL-4S

Active

ITT Cannon, LLC

CONN PLUG FMALE 2P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG FMALE 2P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Voltage Rating	Qualification	Current Rating (Amps)	Shell Size - Insert	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Color	Shell Material	Contact Finish - Mating	Grade	Orientation	Shell Finish	Primary Material	Contact Material	Shell Size - Insert [custom]	Applications	Shielding	Insert Material
ITT Cannon, LLC MS3106F10SL-4S	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-4	Female Sockets Plug	2	-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10SL-3S	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-3	Female Sockets Plug		-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10SL-4SF187	Environment Resistant	500 VAC 700 VDC	MIL-DTL-5015	22 A	10SL-4	Female Sockets Plug	2	-55 °C	125 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal
ITT Cannon, LLC MS3106F10S2S	Environment Resistant		MIL-DTL-5015			Female Sockets Plug	1	-55 °C	125 °C	Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab	Aluminum Alloy	Silver	Military	N	Olive Drab Cadmium	Metal	Copper Alloy	10S-2	Aviation Industrial Marine Military	Unshielded	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
