Technical Specifications
Parameters and characteristics for this part
| Specification | B4505CNS |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 460 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 470 MHz |
| Frequency Range [Min] | 450 MHz |
| Gain | 5 dBi |
| Height (Max) | 819.15 mm |
| Height (Max) [Max] | 32.25 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Termination | NMO |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.80 | |
| 10 | $ 79.48 | |||
| 25 | $ 77.31 | |||
| 100 | $ 71.91 | |||
Description
General part information

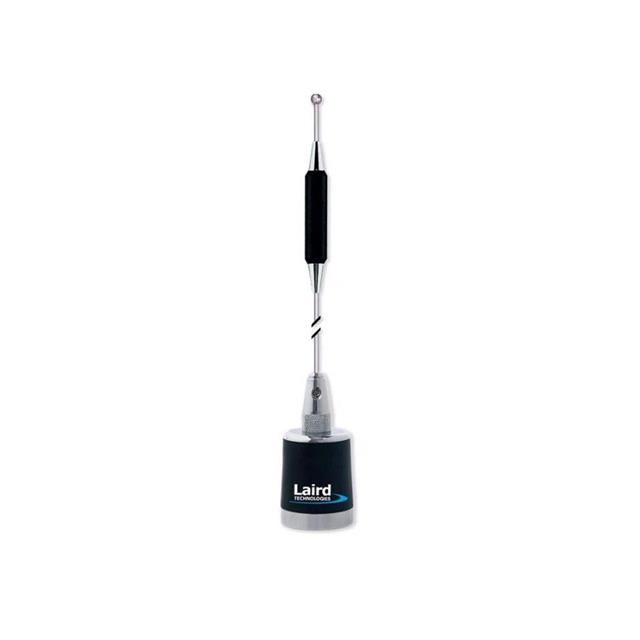

B4505 Series
Whip Antenna, Single Band, UHF / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
