EDAC Inc.

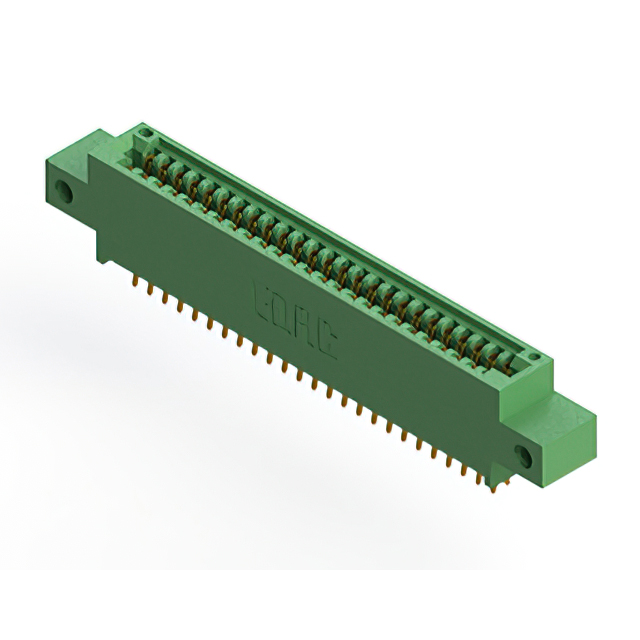

CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-050-556-812

Active

EDAC Inc.

CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-050-556-812

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-050 Series

...

Part	Number of Rows	Contact Type	Color	Gender	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Finish	Pitch [x]	Pitch [x]	Flange Feature	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Read Out	Mounting Type	Material - Insulation	Termination	Features	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-050-525-207	2	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Gold	2.54 mm	0.1 in	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	2	Dual	Through Hole	Diallyl Phthalate (DAP)	Solder
EDAC Inc. 845-050-556-812	2	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Gold	2.54 mm	0.1 in	Side Mount Opening Unthreaded	Non Specified - Dual Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	2	Dual	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	Solder	Card Extender	3.25 mm	0.128 in
EDAC Inc. 845-050-500-612	1	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Gold	2.54 mm	0.1 in	Side Mount Opening Unthreaded	Non Specified - Single Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	1	Single	Through Hole	Diallyl Phthalate (DAP)	Solder Eyelet(s)		3.25 mm	0.128 in
EDAC Inc. 845-050-524-112	1	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Gold	2.54 mm	0.1 in	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	1	Single	Through Hole	Diallyl Phthalate (DAP)	Solder				3.25 mm	0.128 "
EDAC Inc. 845-050-521-404	1	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Gold	2.54 mm	0.1 in	Top Mount Opening Unthreaded	Non Specified - Single Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	1	Single	Through Hole	Diallyl Phthalate (DAP)	Solder				3.96 mm	0.156 in
EDAC Inc. 845-050-525-604	1	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Gold	2.54 mm	0.1 in	Top Mount Opening Unthreaded	Non Specified - Single Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	1	Single	Through Hole	Diallyl Phthalate (DAP)	Solder				3.96 mm	0.156 in
EDAC Inc. 845-050-541-503	2	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Gold	2.54 mm	0.1 in	Floating Bobbin Top Mount Opening	Non Specified - Dual Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	2	Dual	Through Hole	Diallyl Phthalate (DAP)	Wire Wrap				2.95 mm	0.116 in
EDAC Inc. 845-050-540-804	2	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Gold	2.54 mm	0.1 in	Top Mount Opening Unthreaded	Non Specified - Dual Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	2	Dual	Through Hole	Diallyl Phthalate (DAP)	Wire Wrap				3.96 mm	0.156 in
EDAC Inc. 845-050-521-807	2	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	25	Gold	2.54 mm	0.1 in	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	2	Dual	Through Hole	Diallyl Phthalate (DAP)	Solder
EDAC Inc. 845-050-520-403	1	Cantilever	Green	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Gold	2.54 mm	0.1 in	Floating Bobbin Top Mount Opening	Non Specified - Single Edge	50	10 Áin	0.25 Ám	125 °C	-40 °C	1	Single	Through Hole	Diallyl Phthalate (DAP)	Solder				2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 81.03

Description

General part information

845-050 Series

50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
