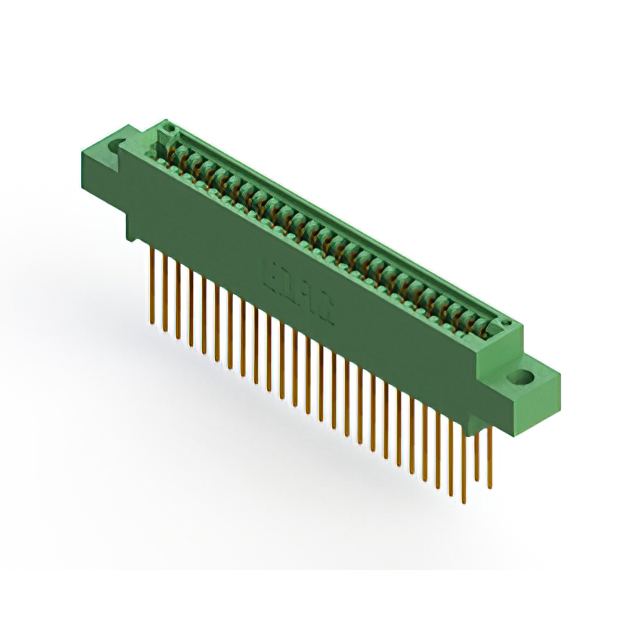

845-050-540-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-050-540-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-050-540-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
845-050 Series
...
| Part | Number of Rows | Contact Type | Color | Gender | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Contact Finish | Pitch [x] | Pitch [x] | Flange Feature | Card Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Read Out | Mounting Type | Material - Insulation | Termination | Features | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Gold | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Solder | |||||
EDAC Inc. | 2 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Gold | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2 | Dual | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Solder | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 50 | Gold | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 1 | Single | Through Hole | Diallyl Phthalate (DAP) | Solder Eyelet(s) | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 50 | Gold | 2.54 mm | 0.1 in | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 1 | Single | Through Hole | Diallyl Phthalate (DAP) | Solder | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 50 | Gold | 2.54 mm | 0.1 in | Top Mount Opening Unthreaded | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 1 | Single | Through Hole | Diallyl Phthalate (DAP) | Solder | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 50 | Gold | 2.54 mm | 0.1 in | Top Mount Opening Unthreaded | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 1 | Single | Through Hole | Diallyl Phthalate (DAP) | Solder | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Gold | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Wire Wrap | 2.95 mm | 0.116 in | |||
EDAC Inc. | 2 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Gold | 2.54 mm | 0.1 in | Top Mount Opening Unthreaded | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Wire Wrap | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Gold | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 2 | Dual | Through Hole | Diallyl Phthalate (DAP) | Solder | |||||
EDAC Inc. | 1 | Cantilever | Green | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 50 | Gold | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | 50 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 1 | Single | Through Hole | Diallyl Phthalate (DAP) | Solder | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
