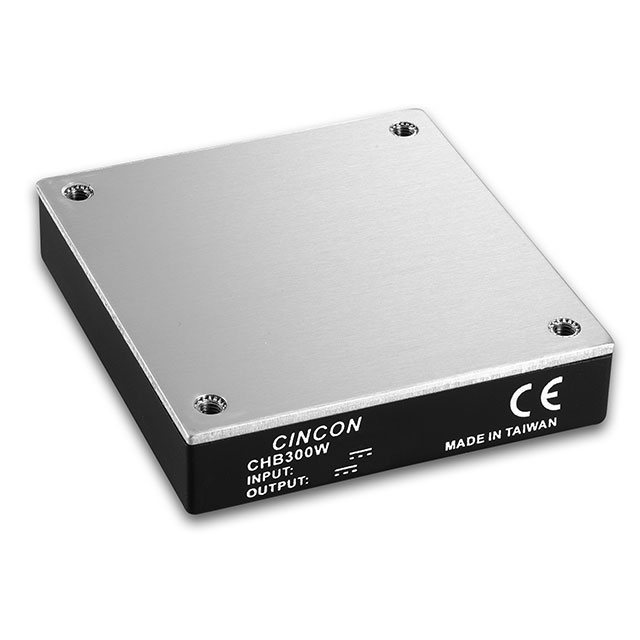

CHB300W-24S48N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 300W

Deep-Dive with AI

Search across all available documentation for this part.

CHB300W-24S48N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 300W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHB300W-24S48N

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active Low, Enable
Current - Output (Max) [Max]	6.25 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	300 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	48 V

CHB300 Series

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Applications	Control Features	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Type	Features	Efficiency	Standard Number	Voltage - Isolation	Approval Agency	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
Cincon Electronics Co. LTD CHB300W-110S12	160 V	12 V	300 W	ITE (Commercial) Railway	Active High Enable	1	Through Hole	25 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	90 %	50155 60950-1 62368-1	3000 V	CB CE cURus	Half Brick	43 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C	Half Brick
Cincon Electronics Co. LTD CHB300W-48S24	75 V	24 V	300 W	ITE (Commercial)	Active High Enable	1	Through Hole	12.5 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	89 %	60950-1	1.5 kV	CE cURus	Half Brick	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-48S28	75 V	28 V	300 W	ITE (Commercial)	Active High Enable	1	Through Hole	10.7 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO		60950-1	1.5 kV	CE cURus	Half Brick	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-24S05	36 V	5 V	300 W	ITE (Commercial)	Active High Enable	1	Through Hole	60 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	88.5 %	60950-1	1.5 kV	CE cURus	Half Brick	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-24S48N	36 V	48 V	300 W	ITE (Commercial)	Active Low Enable	1	Through Hole	6.25 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	88 %	60950-1	1.5 kV	CE cURus	Half Brick	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-48S28N	75 V	28 V	300 W	ITE (Commercial)	Active Low Enable	1	Through Hole	10.7 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO		60950-1	1.5 kV	CE cURus	Half Brick	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-24S15N	36 V	15 V	300 W	ITE (Commercial)	Active Low Enable	1	Through Hole	20 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	91 %	60950-1	1.5 kV	CE cURus	Half Brick	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-48S12N	75 V	12 V	300 W	ITE (Commercial)	Active Low Enable	1	Through Hole	25 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	92 %	60950-1	1.5 kV	CE cURus	Half Brick	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-24S24	36 V	24 V	300 W	ITE (Commercial)	Active High Enable	1	Through Hole	12.5 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	88 %	60950-1	1.5 kV	CE cURus	Half Brick	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C
Cincon Electronics Co. LTD CHB300W-110S05N	160 V	5 V	300 W	ITE (Commercial) Railway	Active Low Enable	1	Through Hole	60 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	88 %	50155 60950-1 62368-1	3000 V	CB CE cURus	Half Brick	43 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	-40 °C	100 °C	Half Brick

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 185.00

Description

General part information

CHB300 Series

Isolated Module DC DC Converter 1 Output 48V 6.25A 9V - 36V Input

Documents

Technical documentation and resources

No documents available
