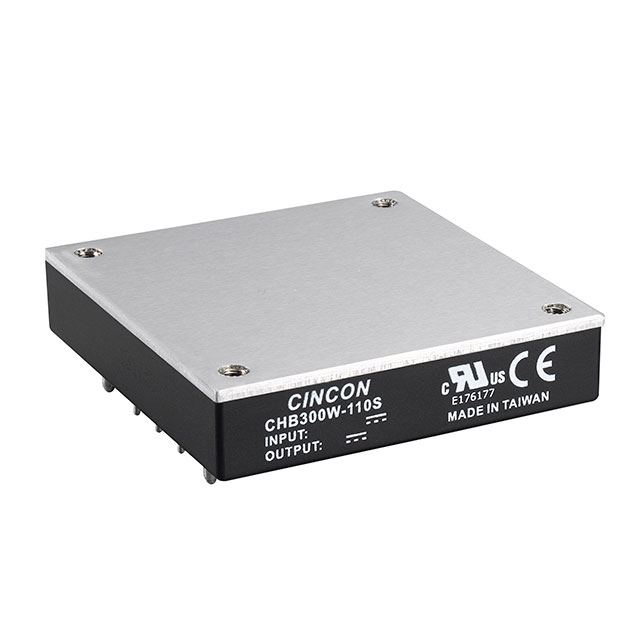

CHB300W-110S12
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHB300W-110S12
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHB300W-110S12 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 25 A |
| Efficiency | 90 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Standard Number | 60950-1, 62368-1, 50155 |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 43 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
CHB300 Series
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Power (Watts) | Applications | Control Features | Number of Outputs | Mounting Type | Current - Output (Max) [Max] | Type | Features | Efficiency | Standard Number | Voltage - Isolation | Approval Agency | Package / Case | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | 160 V | 12 V | 300 W | ITE (Commercial) Railway | Active High Enable | 1 | Through Hole | 25 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 90 % | 50155 60950-1 62368-1 | 3000 V | CB CE cURus | Half Brick | 43 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | Half Brick |
Cincon Electronics Co. LTD | 75 V | 24 V | 300 W | ITE (Commercial) | Active High Enable | 1 | Through Hole | 12.5 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 89 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 18 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 75 V | 28 V | 300 W | ITE (Commercial) | Active High Enable | 1 | Through Hole | 10.7 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 60950-1 | 1.5 kV | CE cURus | Half Brick | 18 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | ||
Cincon Electronics Co. LTD | 36 V | 5 V | 300 W | ITE (Commercial) | Active High Enable | 1 | Through Hole | 60 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 88.5 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 9 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 36 V | 48 V | 300 W | ITE (Commercial) | Active Low Enable | 1 | Through Hole | 6.25 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 88 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 9 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 75 V | 28 V | 300 W | ITE (Commercial) | Active Low Enable | 1 | Through Hole | 10.7 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 60950-1 | 1.5 kV | CE cURus | Half Brick | 18 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | ||
Cincon Electronics Co. LTD | 36 V | 15 V | 300 W | ITE (Commercial) | Active Low Enable | 1 | Through Hole | 20 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 91 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 9 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 75 V | 12 V | 300 W | ITE (Commercial) | Active Low Enable | 1 | Through Hole | 25 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 92 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 18 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 36 V | 24 V | 300 W | ITE (Commercial) | Active High Enable | 1 | Through Hole | 12.5 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 88 % | 60950-1 | 1.5 kV | CE cURus | Half Brick | 9 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | |
Cincon Electronics Co. LTD | 160 V | 5 V | 300 W | ITE (Commercial) Railway | Active Low Enable | 1 | Through Hole | 60 A | Isolated Module | OCP OTP OVP Remote On/Off SCP UVLO | 88 % | 50155 60950-1 62368-1 | 3000 V | CB CE cURus | Half Brick | 43 V | 2.4 in | 0.5 in | 2.28 in | 12.7 mm | 57.9 mm | 61 mm | -40 °C | 100 °C | Half Brick |
