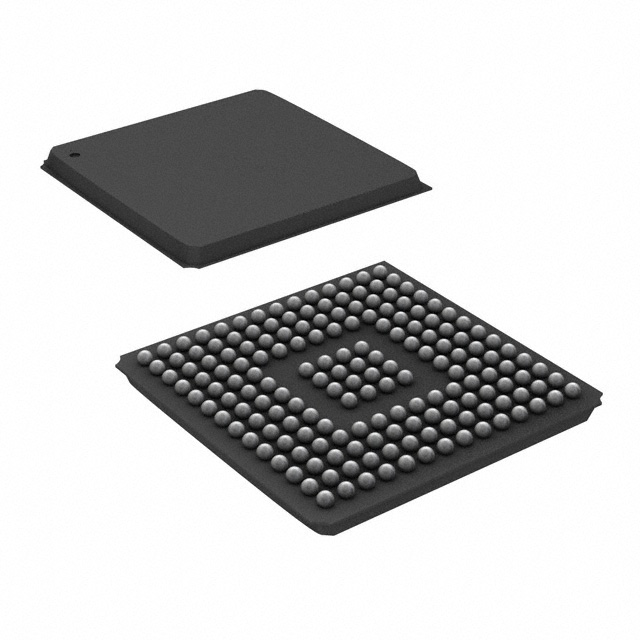

SM320F28335GJZMEP
ActiveC2000™ ENHANCED PRODUCT 32-BIT MCU WITH 150 MIPS, FPU, 512 KB FLASH, EMIF, 12B ADC
Deep-Dive with AI
Search across all available documentation for this part.
SM320F28335GJZMEP
ActiveC2000™ ENHANCED PRODUCT 32-BIT MCU WITH 150 MIPS, FPU, 512 KB FLASH, EMIF, 12B ADC
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SM320F28335GJZMEP | SM320F28335-EP Series |
|---|---|---|
| Core Processor | C28x | C28x |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters | 12 b, 16 | 12 - 16 b |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 88 | 88 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 C | -55 C |
| Oscillator Type | Internal | Internal |
| Package / Case | 176-BGA | 176-LQFP Exposed Pad, 176-BGA |
| Peripherals | WDT, DMA, POR, PWM | WDT, DMA, POR, PWM |
| Program Memory Size | 512 KB | 512 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 34 K | 34 K |
| Speed | 150 MHz | 150 MHz |
| Supplier Device Package | 176-BGA (15x15) | 176-HLQFP (24x24), 176-BGA (15x15) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 65.99 | |
| 10 | $ 61.99 | |||
| 25 | $ 59.99 | |||
| 126 | $ 55.59 | |||
| Texas Instruments | JEDEC TRAY (10+1) | 1 | $ 60.59 | |
| 100 | $ 53.86 | |||
| 250 | $ 44.27 | |||
| 1000 | $ 39.60 | |||
SM320F28335-EP Series
C2000™ Enhanced Product 32-bit MCU with 150 MIPS, FPU, 512 KB Flash, EMIF, 12b ADC
| Part | Speed | Number of I/O | RAM Size | Core Processor | Data Converters | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Oscillator Type | Core Size | Supplier Device Package | Mounting Type | Program Memory Type | Program Memory Size | Peripherals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SM320F28335PTPMEP | 150 MHz | 88 | 34 K | C28x | 12 b, 16 | -55 C | 125 °C | 176-LQFP Exposed Pad | Internal | 32-Bit Single-Core | 176-HLQFP (24x24) | Surface Mount | FLASH | 512 KB | DMA, POR, PWM, WDT |
Texas Instruments SM320F28335GJZMEP | 150 MHz | 88 | 34 K | C28x | 12 b, 16 | -55 C | 125 °C | 176-BGA | Internal | 32-Bit Single-Core | 176-BGA (15x15) | Surface Mount | FLASH | 512 KB | DMA, POR, PWM, WDT |
Description
General part information
SM320F28335-EP Series
The SM320F28335 is a highly integrated, high-performance solution for demanding control applications.
Throughout this document, the device is abbreviated as F28335. provides a summary of features.
The SM320F28335 is a highly integrated, high-performance solution for demanding control applications.
