MVU18-156DMK-A

Active

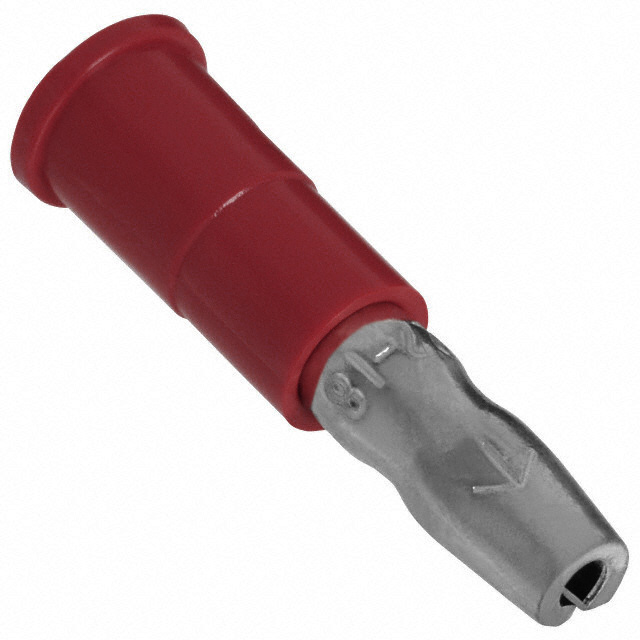

VINYL INSULATED BUTTED SEAM MALE DISCONNECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MVU18-156DMK-A

Active

VINYL INSULATED BUTTED SEAM MALE DISCONNECT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1000	$ 0.49
		1000	$ 0.49
		5000	$ 0.45
		5000	$ 0.45

Description

General part information

MVU18 Series

Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVU18-156DMK-A	MVU18 Series

Color	Red	Red
Contact Finish	-	Tin
Contact Material	-	ETP, Copper, Brass
Diameter - Barrel [diameter]	3.96 mm	3.96 mm
Diameter - Barrel [diameter]	0.156 in	0.156 in
Features	-	Butted Seam
Gender	-	Male, Female
Insulation	Non-Mating End Insulated	Non-Mating End Insulated, Insulated, Fully Insulated
Insulation Diameter	3.68 mm	0.15 - 3.68 mm
Insulation Diameter	-	3.81 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Barrel [x]	0.19 in	0.19 in
Length - Barrel [x]	4.83 mm	4.83 mm
Length - Overall	-	22.86 - 23.62 mm
Length - Overall	-	0.9 in
Length - Overall [x]	21.59 mm	19.81 - 22.35 mm
Length - Overall [x]	0.85 "	0.78 - 0.93 "
Length - Pin	-	0.47 in
Length - Pin	-	11.94 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.45 in
Length - Termination	-	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter	-	1.91 mm
Pin Diameter	-	0.075 in
Stud/Tab Size	-	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud
Tab Thickness	-	0.02 - 0.032 in
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	4.75 - 6.35 mm
Tab Width	-	0.187 - 0.25 in
Terminal Type	Pin (Plug), Male	Pin (Plug), Male, Standard, Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.25 - 0.47 "
Width - Outer Edges	-	6.35 - 11.94 mm
Width - Outer Edges	-	8.64 mm
Width - Outer Edges	-	0.34 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MVU18 Series

VINYL INSULATED BUTTED SEAM MALE DISCONNECT

Part	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel [x]	Length - Barrel [x]	Color	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Finish	Length - Overall	Contact Material	Tab Width	Tab Width	Features	Gender	Tab Thickness	Tab Thickness	Mounting Type	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Pin [x]	Length - Pin [x]	Insulation Diameter	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Thickness	Thickness	Number of Wire Entries
3M MVU18-156DMK-A	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "	3.96 mm	0.156 in	0.19 in	4.83 mm	Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Male, Pin (Plug)
3M MVU18-250DMK		3.68 mm	0.145 "		0.93 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin	23.62 mm	Copper, ETP	6.35 mm	0.25 in	Butted Seam	Male	0.032 in	0.81 mm	Free Hanging (In-Line)
3M MVU18-6FLK	Vinyl	3.68 mm	0.145 "	22.35 mm	0.88 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Snap, Spring	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm	0.25 "	6.35 mm	6 Stud	0.25 in	6.35 mm
3M MVU18-47PK-A	Vinyl	0.15 in								Red	Crimp	Insulated	22 AWG	17.5 AWG		Tin	22.86 mm	Copper															0.47 in	11.94 mm	3.81 mm	0.9 in	1.91 mm	0.075 in
3M MVU18-6R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
3M MVU18-4R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	4 Stud									0.03 in	0.76 mm
3M MVU18BCK										Red	Crimp	Fully Insulated	22 AWG	17.5 AWG	Butt Splice, Individual Openings, Inline																										2
3M MVU18-187DFX-BOTTLE		3.68 mm	0.145 "	19.81 mm	0.78 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin		Brass	4.75 mm	0.187 in	Butted Seam	Female	0.02 "	0.51 mm	Free Hanging (In-Line)
3M MVU18-10FBK	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "					Red	Crimp	Insulated	22 AWG	17.5 AWG	Standard	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm			10 Stud	0.25 in	6.35 mm
3M MVU18-6R/SX-BOTTLE	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
