MVU18-4R/SK

Active

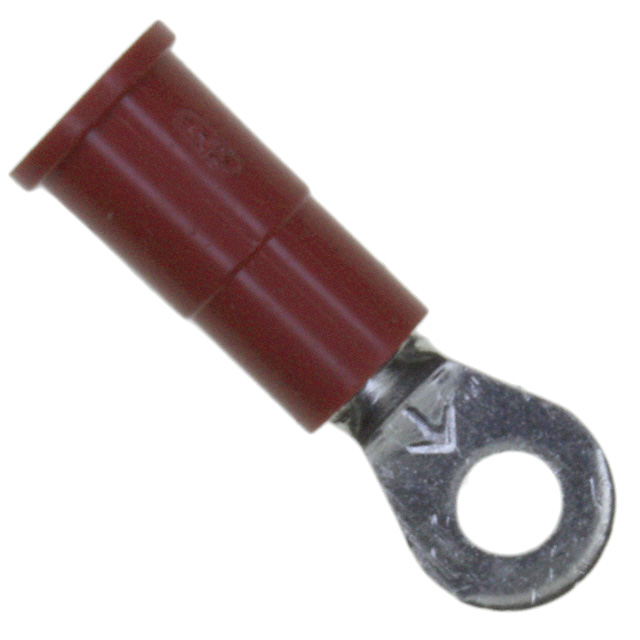

RING TONGUE TERMINAL, M2.5, #4, 18 AWG, SCOTCHLOK SERIES, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Stud Size Chart +2

MVU18-4R/SK

Active

RING TONGUE TERMINAL, M2.5, #4, 18 AWG, SCOTCHLOK SERIES, RED

Deep-Dive with AI

DocumentsDatasheet Terminal Stud Size Chart +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.86
		10	$ 0.66
		25	$ 0.59
		50	$ 0.55
		100	$ 0.50
		250	$ 0.46
		500	$ 0.42
		1000	$ 0.39
		2500	$ 0.36
Newark	Each	1000	$ 0.42

Description

General part information

MVU18 Series

Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Specification	MVU18-4R/SK	MVU18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Features	-	Butted Seam
Gender	-	Male, Female
Insulation	Insulated	Non-Mating End Insulated, Insulated, Fully Insulated
Insulation Diameter	3.68 mm	0.15 - 3.68 mm
Insulation Diameter	-	3.81 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Barrel	-	0.19 in
Length - Barrel	-	4.83 mm
Length - Overall	-	22.86 - 23.62 mm
Length - Overall	-	0.9 in
Length - Overall [x]	20.32 mm	19.81 - 22.35 mm
Length - Overall [x]	0.8 in	0.78 - 0.93 "
Length - Pin	-	0.47 in
Length - Pin	-	11.94 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.45 in
Length - Termination	-	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter	-	1.91 mm
Pin Diameter	-	0.075 in
Stud/Tab Size	4 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud
Tab Thickness	-	0.02 - 0.032 in
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	4.75 - 6.35 mm
Tab Width	-	0.187 - 0.25 in
Terminal Type	Circular	Pin (Plug), Male, Standard, Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	-	8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges [y]	0.25 "	0.25 - 0.47 "
Width - Outer Edges [y]	6.35 mm	6.35 - 11.94 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

Part

Material - Insulation

Insulation Diameter

Insulation Diameter [diameter]

Length - Overall [x]

Diameter - Barrel [diameter]

Length - Barrel [x]

Color

Termination

Insulation

Wire Gauge [Max]

Wire Gauge [Min]

Terminal Type

Contact Finish

Length - Overall

Contact Material

Tab Width

Features

Gender

Tab Thickness

Mounting Type

Length - Termination [x]

Width - Outer Edges [y]

Stud/Tab Size

Length - Ring Center to Termination [x]

Length - Pin [x]

Insulation Diameter

Length - Overall

Pin Diameter [diameter]

Thickness

Number of Wire Entries

Stud/Tab Size

Width - Outer Edges

Length - Ring Center to Termination

MVU18-156DMK-A

Vinyl

3.68 mm

0.145 "

21.59 mm

0.85 "

3.96 mm

0.156 in

0.19 in

4.83 mm

Red

Crimp

Non-Mating End Insulated

22 AWG

17.5 AWG

Male, Pin (Plug)

MVU18-250DMK

3.68 mm

0.145 "

0.93 in

Red

Crimp

Non-Mating End Insulated

22 AWG

17.5 AWG

Standard

Tin

23.62 mm

Copper, ETP

6.35 mm

0.25 in

Butted Seam

Male

0.032 in

0.81 mm

Free Hanging (In-Line)

MVU18-6FLK

Vinyl

3.68 mm

0.145 "

22.35 mm

0.88 in

Red

Crimp

Insulated

22 AWG

17.5 AWG

Snap, Spring

Tin

Copper, ETP

Butted Seam

Free Hanging (In-Line)

0.45 in

11.43 mm

0.25 "

6.35 mm

6 Stud

0.25 in

6.35 mm

MVU18-47PK-A

Vinyl

0.15 in

Red

Crimp

Insulated

22 AWG

17.5 AWG

Tin

22.86 mm

Copper

0.47 in

11.94 mm

3.81 mm

0.9 in

1.91 mm

0.075 in

MVU18-6R/SK

Vinyl

3.68 mm

0.145 "

20.32 mm

0.8 in

Red

Crimp

Insulated

22 AWG

17.5 AWG

Circular

Tin

Copper, ETP

Free Hanging (In-Line)

0.25 "

6.35 mm

6 Stud

0.03 in

0.76 mm

MVU18-4R/SK

Vinyl

3.68 mm

0.145 "

20.32 mm

0.8 in

Red

Crimp

Insulated

22 AWG

17.5 AWG

Circular

Tin

Copper, ETP

Free Hanging (In-Line)

0.25 "

6.35 mm

4 Stud

0.03 in

0.76 mm

MVU18BCK

Red

Crimp

Fully Insulated

22 AWG

17.5 AWG

Butt Splice, Individual Openings, Inline

MVU18-187DFX-BOTTLE

3.68 mm

0.145 "

19.81 mm

0.78 in

Red

Crimp

Non-Mating End Insulated

22 AWG

17.5 AWG

Standard

Tin

Brass

4.75 mm

0.187 in

Butted Seam

Female

0.02 "

0.51 mm

Free Hanging (In-Line)

MVU18-10FBK

Vinyl

3.68 mm

0.145 "

21.59 mm

0.85 "

Red

Crimp

Insulated

22 AWG

17.5 AWG

Standard

Tin

Copper, ETP

Butted Seam

Free Hanging (In-Line)

0.45 in

11.43 mm

10 Stud

0.25 in

6.35 mm

MVU18-6R/SX-BOTTLE

Vinyl

3.68 mm

0.145 "

20.32 mm

0.8 in

Red

Crimp

Insulated

22 AWG

17.5 AWG

Circular

Tin

Copper, ETP

Free Hanging (In-Line)

0.25 "

6.35 mm

6 Stud

0.03 in

0.76 mm

Part	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel [x]	Length - Barrel [x]	Color	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Finish	Length - Overall	Contact Material	Tab Width	Tab Width	Features	Gender	Tab Thickness	Tab Thickness	Mounting Type	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Pin [x]	Length - Pin [x]	Insulation Diameter	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Thickness	Thickness	Number of Wire Entries
3M MVU18-156DMK-A	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "	3.96 mm	0.156 in	0.19 in	4.83 mm	Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Male, Pin (Plug)
3M MVU18-250DMK		3.68 mm	0.145 "		0.93 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin	23.62 mm	Copper, ETP	6.35 mm	0.25 in	Butted Seam	Male	0.032 in	0.81 mm	Free Hanging (In-Line)
3M MVU18-6FLK	Vinyl	3.68 mm	0.145 "	22.35 mm	0.88 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Snap, Spring	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm	0.25 "	6.35 mm	6 Stud	0.25 in	6.35 mm
3M MVU18-47PK-A	Vinyl	0.15 in								Red	Crimp	Insulated	22 AWG	17.5 AWG		Tin	22.86 mm	Copper															0.47 in	11.94 mm	3.81 mm	0.9 in	1.91 mm	0.075 in
3M MVU18-6R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
3M MVU18-4R/SK	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	4 Stud									0.03 in	0.76 mm
3M MVU18BCK										Red	Crimp	Fully Insulated	22 AWG	17.5 AWG	Butt Splice, Individual Openings, Inline																										2
3M MVU18-187DFX-BOTTLE		3.68 mm	0.145 "	19.81 mm	0.78 in					Red	Crimp	Non-Mating End Insulated	22 AWG	17.5 AWG	Standard	Tin		Brass	4.75 mm	0.187 in	Butted Seam	Female	0.02 "	0.51 mm	Free Hanging (In-Line)
3M MVU18-10FBK	Vinyl	3.68 mm	0.145 "	21.59 mm	0.85 "					Red	Crimp	Insulated	22 AWG	17.5 AWG	Standard	Tin		Copper, ETP			Butted Seam				Free Hanging (In-Line)	0.45 in	11.43 mm			10 Stud	0.25 in	6.35 mm
3M MVU18-6R/SX-BOTTLE	Vinyl	3.68 mm	0.145 "	20.32 mm	0.8 in					Red	Crimp	Insulated	22 AWG	17.5 AWG	Circular	Tin		Copper, ETP							Free Hanging (In-Line)			0.25 "	6.35 mm	6 Stud									0.03 in	0.76 mm
