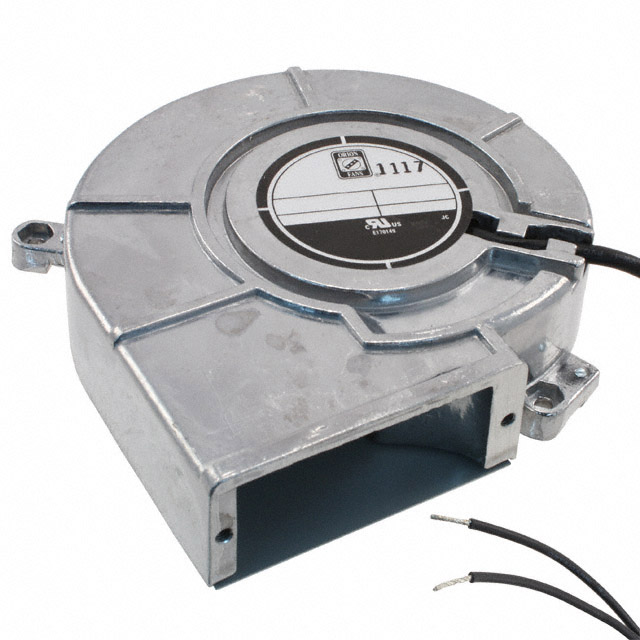

OAB800AN-22-1WB
ActiveOrion Fans
FAN BLOWER 125X39MM 230VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OAB800AN-22-1WB
ActiveOrion Fans
FAN BLOWER 125X39MM 230VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OAB800AN-22-1WB |
|---|---|
| Air Flow | 0.84 mł/min |
| Air Flow | 30 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Blower |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 48 dB |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 18 W |
| RPM | 2800 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [z] | 126 mm |
| Static Pressure | 0.51 in H2O |
| Static Pressure | 127 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 230 VAC |
| Width [x] | 39 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.91 | |
| 10 | $ 32.79 | |||
| 40 | $ 31.55 | |||
| 80 | $ 29.47 | |||
| 120 | $ 27.19 | |||
| 280 | $ 26.77 | |||
Description
General part information
OAB800AN Series
Fan Blower 230VAC Rectangular/Rounded - 125mm L x 126mm H Ball 30.0 CFM (0.840m³/min) 3 Wire Leads
Documents
Technical documentation and resources
No documents available
