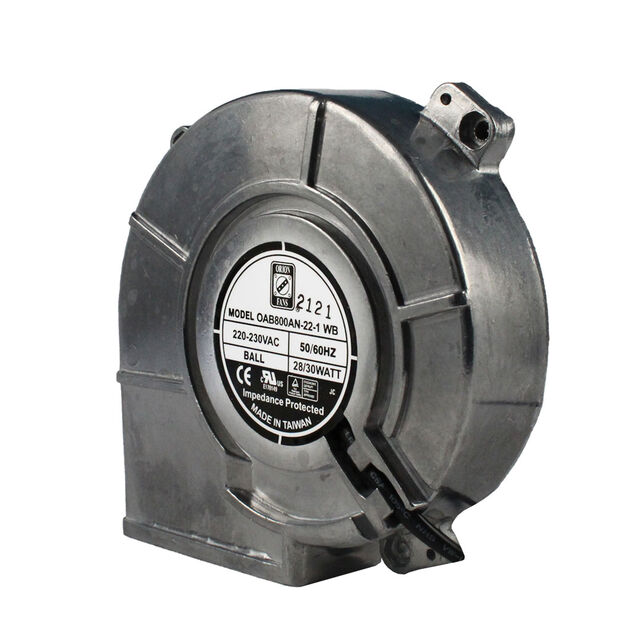

OAB800AN-22-3WB

Active

Orion Fans

FAN BLOWER 125X39MM 230VAC WIRE

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER 125X39MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Noise	Air Flow	Air Flow	Power (Watts)	Fan Type	Bearing Type	Width [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Static Pressure	Static Pressure	Termination	Material - Blade	Voltage - Rated	RPM	Material - Frame
Orion Fans OAB800AN-11-2WB	120 VAC	100 VAC	Rectangular/Rounded	125 mm	126 mm	39 dB(A)	0.616 m³/min	22 CFM	12 W	Blower	Ball	39 mm	-20 C	-20 °C	75 ░C	75 °C	cURus TUV	87.2 Pa	0.35 in H2O	3 Wire Leads	Plastic	115 VAC	2100 RPM	Aluminum
Orion Fans OAB800AN-22-2WB			Rectangular/Rounded	125 mm	126 mm	39 dB(A)	0.616 m³/min	22 CFM	12 W	Blower	Ball	39 mm	-20 C	-20 °C	75 ░C	75 °C	cURus TUV	87.2 Pa	0.35 in H2O	3 Wire Leads	Plastic	230 VAC	2100 RPM	Aluminum
Orion Fans OAB800AN-11-3WB	120 VAC	100 VAC	Rectangular/Rounded	125 mm	126 mm	28 dB	0.392 m³/min	14 CFM	9 W	Blower	Ball	39 mm	-20 C	-20 °C	75 ░C	75 °C	cURus TUV	47.3 Pa	0.19 in H2O	3 Wire Leads	Plastic	115 VAC	1400 RPM	Aluminum
Orion Fans OAB800AN-22-3WB			Rectangular/Rounded	125 mm	126 mm	28 dB	0.392 m³/min	14 CFM	9 W	Blower	Ball	39 mm	-20 C	-20 °C	75 ░C	75 °C	cURus TUV	47.3 Pa	0.19 in H2O	3 Wire Leads	Plastic	230 VAC	1400 RPM	Aluminum
Orion Fans OAB800AN-22-1WB			Rectangular/Rounded	125 mm	126 mm	48 dB	0.84 mł/min	30 CFM	18 W	Blower	Ball	39 mm	-20 C	-20 °C	75 ░C	75 °C	cURus TUV	127 Pa	0.51 in H2O	3 Wire Leads	Plastic	230 VAC	2800 RPM	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	120	$ 27.19

General part information

Fan Blower 230VAC Rectangular/Rounded - 125mm L x 126mm H Ball 14.0 CFM (0.392m³/min) 3 Wire Leads

Technical documentation and resources

No documents available
