10368-A230-00

Active

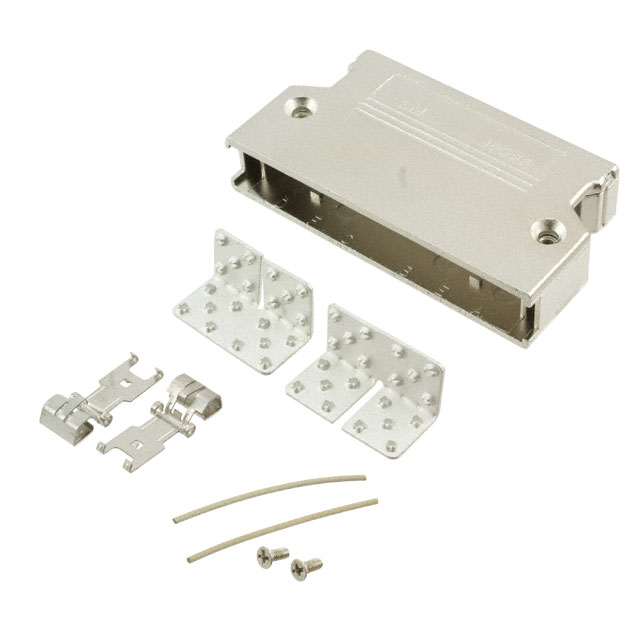

CONN JUNCTION SHELL 68POS

Search across all available documentation for this part.

Active

CONN JUNCTION SHELL 68POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 20.10

General part information

68 Position Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10368-A230-00	10368 Series

	-	-
Accessory Type	-	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	-	60 - 180 °
Cable Type	-	Round, Flat
Color	-	Silver, Beige, Black
Features	-	Latch Lock, Mating Screws 4-40
Hardware	-	Assembly Hardware, Gasket
Material	-	Zinc Alloy, Metal, Metal, Zinc
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	68	68
Plating	-	Nickel
Primary Material	-	Metal
Shielding	-	Shielded

CONN BACKSHELL 68POS 60DEG SHLD

Part	Primary Material	Cable Exit	Cable Type	Color	Plating	Number of Positions	Shielding	Material	Features	Accessory Type	Material [custom]	Material [custom]	Hardware
3M 10368-A500-00	Metal	60 °	Round	Silver	Nickel	68	Shielded	Metal, Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-C500-00	Metal	60 °	Round	Silver	Nickel	68	Shielded	Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-3280-000-1	Metal	180 °	Round	Beige		68	Shielded		Latch Lock	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-32J0-000	Metal	180 °	Round	Beige		68	Shielded		Mating Screws 4-40	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-3281-000-1
3M 10368-12R1-00	Metal	180 °	Flat	Silver	Nickel	68	Shielded	Metal, Zinc	Mating Screws 4-40	Two Piece Backshell			Assembly Hardware, Gasket
3M 10368-A230-00						68
3M 10368-C200-00	Metal	180 °	Round	Silver	Nickel	68	Shielded	Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-32J0-006	Metal	180 °	Round	Black		68	Shielded		Mating Screws 4-40	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-3280-000-0	Metal	180 °	Round	Beige		68	Shielded		Latch Lock	Two Piece Backshell and Cover	Plastic, Steel	Metal
