BSZ0905PNSATMA1

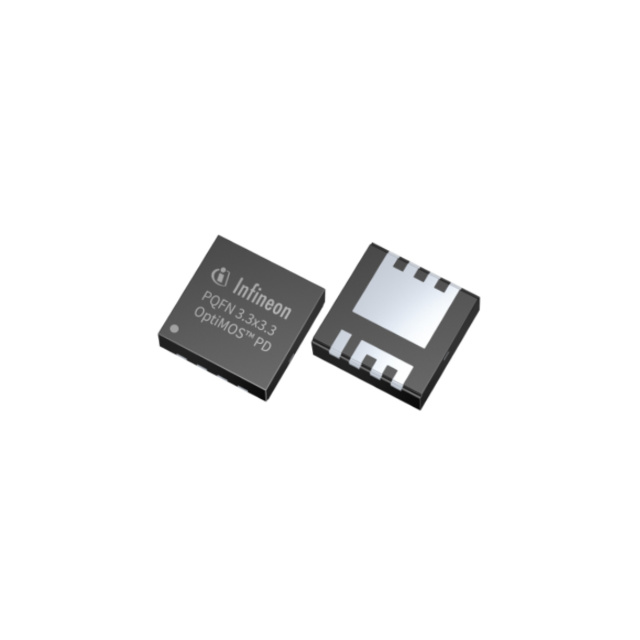

ObsoleteOPTIMOS™ PD P-CHANNEL POWER MOSFET -30 V ; PQFN 3.3 X 3.3 PACKAGE; 8.6 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
BSZ0905PNSATMA1
ObsoleteOPTIMOS™ PD P-CHANNEL POWER MOSFET -30 V ; PQFN 3.3 X 3.3 PACKAGE; 8.6 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSZ0905PNSATMA1 |
|---|---|
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 43.2 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 3190 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 69 W |
| Rds On (Max) @ Id, Vgs | 8.6 mOhm |
| Supplier Device Package | PG-TDSON-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 25 V |
| Vgs(th) (Max) @ Id | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BSZ0905 Series
OptiMOS™ PD power MOSFETis Infineon’s portfolio targeting USB-PD and adapter applications. The products offer fast ramp-up and optimized lead times. OptiMOS™ low-voltage MOSFETs for power delivery enable designs with less parts leading to BOM cost reduction. OptiMOS™ PD features quality products in compact, lightweight packages. Click here to viewfull portfolio.
