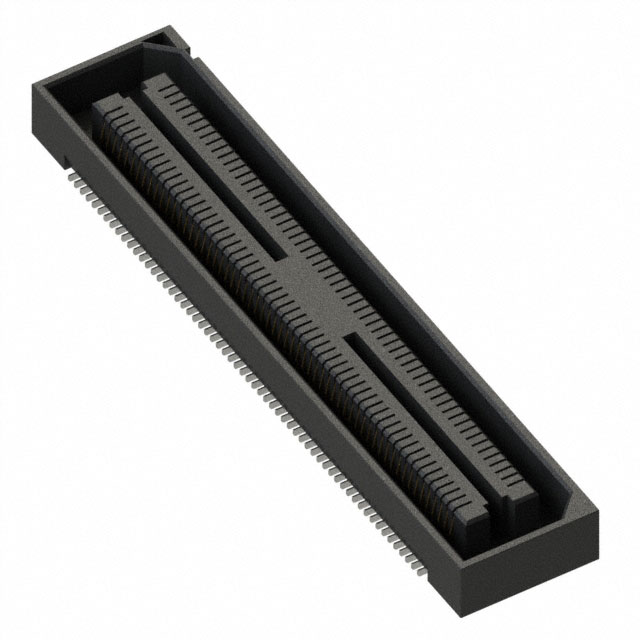

BSH-060-01-H-D-TR

Active

Samtec Inc.

CONN SOCKET 120POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSH-060-01-H-D-TR

Active

Samtec Inc.

CONN SOCKET 120POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-060-01-H-D-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BSH-060 Series

Part	Height Above Board	Height Above Board	Connector Type	Mounting Type	Contact Finish	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. BSH-060-01-L-D-LC-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-L-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Board Guide
Samtec Inc. BSH-060-01-L-D-LC	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-F-D-EM2			Socket Center Strip Contacts	Board Edge Straddle Mount	Gold	120		0.5 mm	0.02 in	2	3 Áin	0.076 Ám
Samtec Inc. BSH-060-01-F-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Board Guide
Samtec Inc. BSH-060-01-L-D-EM2			Socket Center Strip Contacts	Board Edge Straddle Mount	Gold	120		0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-H-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	Board Guide
Samtec Inc. BSH-060-01-H-D-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám
Samtec Inc. BSH-060-01-H-D-A	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	Board Guide
Samtec Inc. BSH-060-01-L-D-DP	3.25 mm	0.128 in	Differential Pair Array Female	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 7.20

Description

General part information

BSH-060 Series

120 Position Connector Socket, Center Strip Contacts Surface Mount Gold
