BSH-060-01-F-D-A-TR

Active

Samtec Inc.

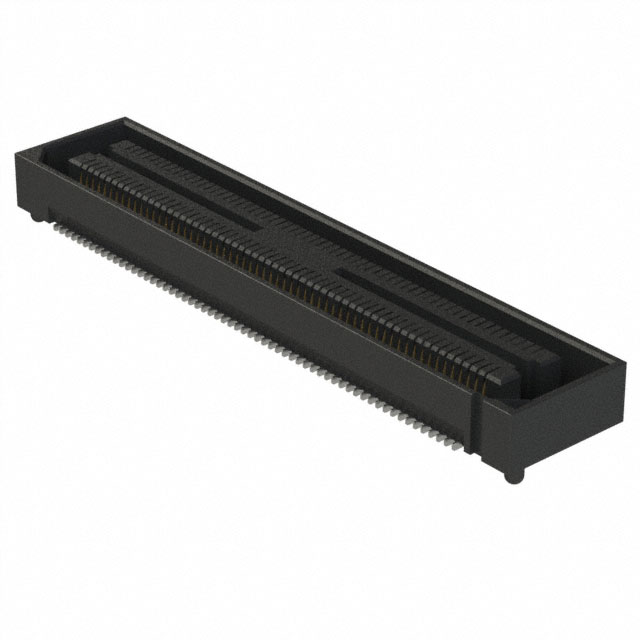

MEZZANINE CONNECTOR, RECEPTACLE, 0.5 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBSH Series Other Related Documents 01 Datasheet +3

BSH-060-01-F-D-A-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.5 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Deep-Dive with AI

DocumentsBSH Series Other Related Documents 01 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-060-01-F-D-A-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BSH-060 Series

Part	Height Above Board	Height Above Board	Connector Type	Mounting Type	Contact Finish	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. BSH-060-01-L-D-LC-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-L-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám	Board Guide
Samtec Inc. BSH-060-01-L-D-LC	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-F-D-EM2			Socket Center Strip Contacts	Board Edge Straddle Mount	Gold	120		0.5 mm	0.02 in	2	3 Áin	0.076 Ám
Samtec Inc. BSH-060-01-F-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	3 Áin	0.076 Ám	Board Guide
Samtec Inc. BSH-060-01-L-D-EM2			Socket Center Strip Contacts	Board Edge Straddle Mount	Gold	120		0.5 mm	0.02 in	2	10 Áin	0.25 Ám
Samtec Inc. BSH-060-01-H-D-A-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	Board Guide
Samtec Inc. BSH-060-01-H-D-TR	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám
Samtec Inc. BSH-060-01-H-D-A	3.25 mm	0.128 in	Socket Center Strip Contacts	Surface Mount	Gold	120	5 mm	0.5 mm	0.02 in	2	30 Áin	0.76 Ám	Board Guide
