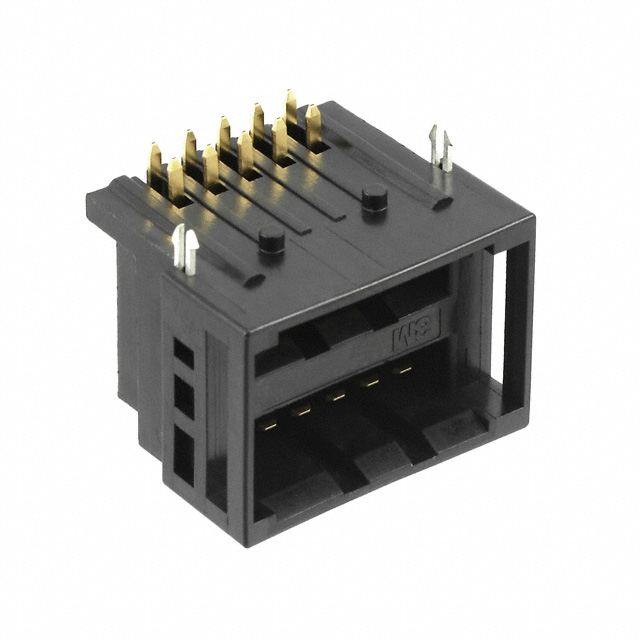

3M POWER CLAMP HEADER, 356 SERIES, 35610-5253-B00PE

Deep-Dive with AI

Search across all available documentation for this part.

Documents3M Power Clamp System Datasheet

35610-5253-B00PE

Active

3M (TC)

3M POWER CLAMP HEADER, 356 SERIES, 35610-5253-B00PE

Deep-Dive with AI

Documents3M Power Clamp System Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35610-5253-B00PE

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	18.3 mm
Insulation Height	0.72 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC
