35610-6234-B00PE

Active

3M (TC)

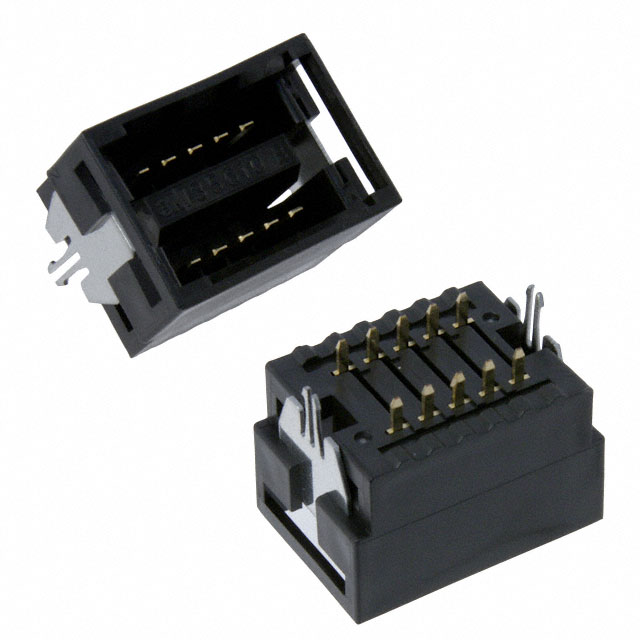

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents3M Power Clamp System Datasheet

35610-6234-B00PE

Active

3M (TC)

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

Documents3M Power Clamp System Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35610-6234-B00PE

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	0.65 in
Insulation Height	16.5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

35610 Series

Part	Contact Finish - Post	Termination	Number of Rows	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions Loaded	Features	Connector Type	Material Flammability Rating	Insulation Color	Mounting Type	Contact Finish - Mating	Contact Material	Fastening Type	Style	Number of Positions	Shrouding	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Voltage Rating	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post
3M (TC) 35610-6224-A00PE	Gold	Solder	2	Male Blade	0.51 µm	20 µin	Rectangular	All	Board Guide Board Lock	Header	UL94 V-0	Black	Through Hole	Gold	Copper Alloy	Latch Holder	Board to Cable/Wire	10	Shrouded - 4 Wall	0.11 in	2.79 mm	0.118 in	3 mm	250 VDC	Nylon Polyamide (PA)	0.65 in	16.5 mm	Flash
3M (TC) 35610-5253-B00PE	Gold	Solder	2	Male Blade	0.51 µm	20 µin	Rectangular	All	Board Guide Board Lock	Header	UL94 V-0	Black	Through Hole Right Angle	Gold	Copper Alloy	Latch Holder	Board to Cable/Wire	10	Shrouded - 4 Wall	0.11 in	2.79 mm	0.118 in	3 mm	250 VDC	Polybutylene Terephthalate (PBT)	0.72 in	18.3 mm	Flash
3M (TC) 35610-6234-B00PE	Gold	Solder	2	Male Blade	0.51 µm	20 µin	Rectangular	All	Board Guide Board Lock	Header	UL94 V-0	Black	Through Hole	Gold	Copper Alloy	Latch Holder	Board to Cable/Wire	10	Shrouded - 4 Wall	0.11 in	2.79 mm	0.118 in	3 mm	250 VDC	Nylon Polyamide (PA)	0.65 in	16.5 mm	Flash
3M (TC) 35610-5253-A00PE	Gold	Solder	2	Male Blade	0.51 µm	20 µin	Rectangular	All	Board Guide Board Lock	Header	UL94 V-0	Black	Through Hole Right Angle	Gold	Copper Alloy	Latch Holder	Board to Cable/Wire	10	Shrouded - 4 Wall	0.11 in	2.79 mm	0.118 in	3 mm	250 VDC	Polybutylene Terephthalate (PBT)	0.72 in	18.3 mm	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

35610 Series

Connector Header Through Hole 10 position 0.118" (3.00mm)

Documents

Technical documentation and resources

3M Power Clamp System

Datasheet
