DAC53204YBHR
Active10-BIT 4-CHANNEL VOLTAGE/CURRENT OUTPUT SMART DAC WITH HI-Z, EEPROM AND WAVEFORM GENERATOR IN WCSP
Deep-Dive with AI
Search across all available documentation for this part.
DAC53204YBHR
Active10-BIT 4-CHANNEL VOLTAGE/CURRENT OUTPUT SMART DAC WITH HI-Z, EEPROM AND WAVEFORM GENERATOR IN WCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAC53204YBHR |
|---|---|
| Architecture | String DAC |
| Data Interface | SPI, I2C |
| Differential Output | False |
| INL/DNL (LSB) [Max] | 1 FSR |
| INL/DNL (LSB) [Min] | -1 FSR |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Number of D/A Converters | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Voltage or Current - Buffered |

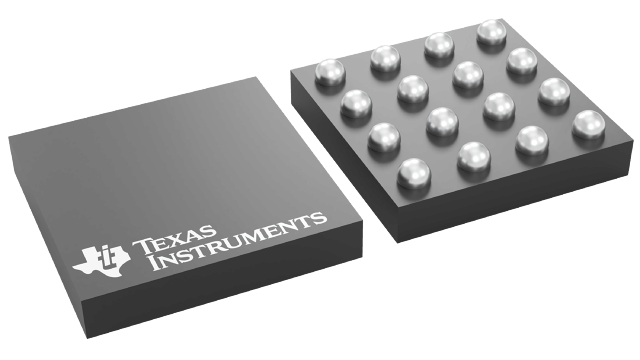

| Package / Case | DSBGA, 16-XFBGA |
| Reference Type | Internal, External |
| Settling Time | 60 µs |
| Supplier Device Package | 16-DSBGA |
| Supplier Device Package [x] | 1.62 |
| Supplier Device Package [y] | 1.62 |
| Voltage - Supply, Analog [Max] | 5.5 V |
| Voltage - Supply, Analog [Min] | 1.7 V |
| Voltage - Supply, Digital | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC53204W Series
10-bit 4-channel voltage/current output smart DAC with Hi-Z, EEPROM and waveform generator in WCSP
| Part | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Mounting Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Reference Type | Output Type | Voltage - Supply, Digital | Number of D/A Converters | Differential Output | Architecture | Settling Time | Number of Bits | INL/DNL (LSB) [Max] | INL/DNL (LSB) [Min] | Data Interface | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DAC53204YBHRThe 12-bit DAC63204W and 10-bit DAC53204W ( DACx3204W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current source or sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
The 12-bit DAC63204W and 10-bit DAC53204W ( DACx3204W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current source or sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation. | 1.62 | 16-DSBGA | 1.62 | Surface Mount | 5.5 V | 1.7 V | External, Internal | Voltage or Current - Buffered | 5.5 V | 4 | String DAC | 60 µs | 10 | 1 FSR | -1 FSR | I2C, SPI | 16-XFBGA, DSBGA | 125 °C | -40 °C |
Description
General part information
DAC53204W Series
The 12-bit DAC63204W and 10-bit DAC53204W ( DACx3204W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current source or sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
The 12-bit DAC63204W and 10-bit DAC53204W ( DACx3204W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current source or sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.
