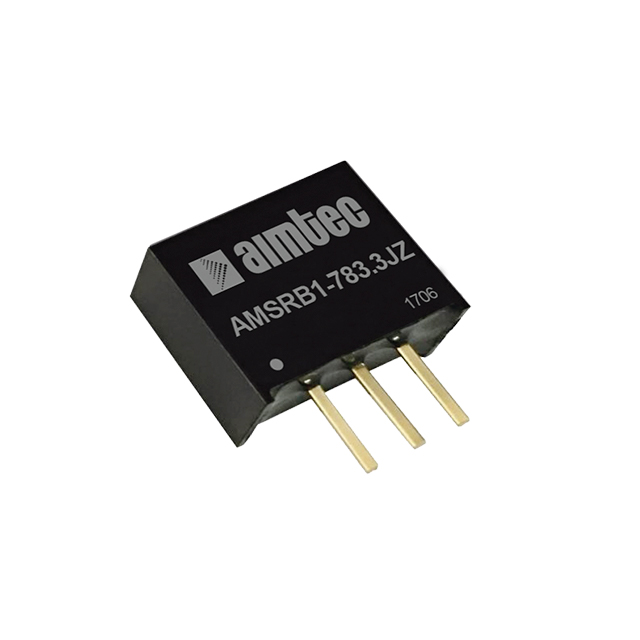

AMSRB1-7812JZ

Obsolete

aimtec

DC DC CONVERTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMSRB1-7812JZ

Obsolete

aimtec

DC DC CONVERTER 12V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.02
		10	$ 3.53
		25	$ 3.36
		50	$ 3.23
		100	$ 3.10
		250	$ 2.95

Description

General part information

AMSRB Series

Non-Isolated PoL Module DC DC Converter 1 Output 12V 1A 16V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMSRB1-7812JZ	AMSRB Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CE
Current - Output (Max) [Max]	1 A	1 - 500 A
Efficiency	96 %	75 - 96 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	3-SIP Module	3-SIP Module
Power (Watts)	12 W	1.65 - 15 W
Size / Dimension [x]	0.46 in	0.46 in
Size / Dimension [x]	11.6 mm	11.6 - 11.7 mm
Size / Dimension [y]	8 mm	7.5 - 8 mm
Size / Dimension [y]	0.32 in	0.29 - 0.32 "
Size / Dimension [z]	0.41 "	0.4 - 0.41 "
Size / Dimension [z]	10.4 mm	10.2 - 10.4 mm
Standard Number	-	55032 Class B
Supplier Device Package	3-SIP	3-SIP Module, 3-SIP
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V	28 - 36 V
Voltage - Input (Min) [Min]	16 V	4.5 - 20 V
Voltage - Output 1	12 V	3.3 - 15 V
Voltage - Output 1	-	15 V
Voltage - Output 1	-	-15 V

AMSRB Series

DC DC CONVERTER 15V 15W

Part	Applications	Type	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 1	Standard Number	Approval Agency	Supplier Device Package
aimtec AMSRB1-7815JZ	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.41 "	0.46 in	11.6 mm	8 mm	10.4 mm	0.31 "	Through Hole	15 W	15 V	-15 V	36 V	1 A	93 %	20 V
aimtec AMSRB1-783.3JZ	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.41 "	0.46 in	11.6 mm	8 mm	10.4 mm	0.31 "	Through Hole	3.3 W			36 V	1 A	80 %	6 V	3.3 V
aimtec AMSRB-7815Z	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.4 "	0.46 in	11.7 mm	7.5 mm	10.2 mm	0.29 "	Through Hole	7.5 W			28 V	500 mA	92 %	17 V	15 V	55032 Class B	CE	3-SIP Module
aimtec AMSRB-7812Z	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.4 "	0.46 in	11.7 mm	7.5 mm	10.2 mm	0.29 "	Through Hole	6 W			28 V	500 mA	90 %	14 V	12 V	55032 Class B	CE	3-SIP Module
aimtec AMSRB1-7809JZ	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.41 "	0.46 in	11.6 mm	8 mm	10.4 mm	0.31 "	Through Hole	9 W			36 V	1 A	89 %	13 V	9 V
aimtec AMSRB1-7805Z	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.4 "	0.46 in	11.7 mm	7.7 mm	10.2 mm	0.3 "	Through Hole	5 W			28 V	1 A	86 %	8 V	5 V
aimtec AMSRB1-7812JZ	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.41 "	0.46 in	11.6 mm	8 mm	10.4 mm	0.32 in	Through Hole	12 W			36 V	1 A	96 %	16 V	12 V			3-SIP
aimtec AMSRB-783.3Z	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.4 "	0.46 in	11.7 mm	7.5 mm	10.2 mm	0.3 "	Through Hole	1.65 W			28 V	500 mA	75 %	4.5 V	3.3 V		CE	3-SIP Module
aimtec AMSRB-7805Z	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.4 "	0.46 in	11.7 mm	7.5 mm	10.2 mm	0.29 "	Through Hole				28 V	500 mA	80 %	7 V	5 V		CE
aimtec AMSRB1-7805JZ	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module	1	85 °C	-40 °C	0.41 "	0.46 in	11.6 mm	8 mm	10.4 mm	0.32 in	Through Hole	5 W			36 V	1 A	93 %	8 V	5 V			3-SIP
