AMSRB1-7805Z
ActiveSWITCHING REGULATORS; PRODUCT WEIGHT (GRAMS): 2.1; INPUT VOLTAGE MIN (V): 8; INPUT VOLTAGE MAX (V): 28; OUTPUT VOLTAGE MIN: 5; OUTPUT VOLTAGE MAX: 5; OUTPUT VOLTAGE DUAL ASSYMETRIC (Y/N): SINGLE; OUTPUT POWER (W): 5; MAX OUTPUT CURRENT (A): 1; EFFICIENCY (%): 86~93; MAX CAPACITIVE LOAD (ΜF): 220; PACKAGE TYPE: SIP3; MOUNTING: PCB; W (IN): 0.29; L (IN): 0.46; H (IN): 0.4; W (MM): 7.5; L (MM): 11.68; H (MM): 10.16; MIN OPERATING TEMPERATURE: -40; MAX OPERATING TEMPERATURE (°C): 85; EMC COMPLIANCE 2: EN 55032 CLASS B; CASE MATERIAL: PLASTIC (FLAMMABILITY TO UL 94V-0) ; APPLICATION 4 (BUILDING AUTOMATION/IOT): 1; APPLICATION 5 (INDUSTRIAL): 1; MTBF (H): 3800000; DERATING : 60; VOLTAGE ACCURACY (%): ±3; LINE REGULATION (% OF VIN): ±1; LOAD REGULATION %: ±1.5; RIPPLE & NOISE (MV P-P): 100; SWITCHING FREQUENCY TYP (KHZ): 330; SHORT CIRCUIT PROTECTION: CONTINUOUS
Deep-Dive with AI
Search across all available documentation for this part.
AMSRB1-7805Z
ActiveSWITCHING REGULATORS; PRODUCT WEIGHT (GRAMS): 2.1; INPUT VOLTAGE MIN (V): 8; INPUT VOLTAGE MAX (V): 28; OUTPUT VOLTAGE MIN: 5; OUTPUT VOLTAGE MAX: 5; OUTPUT VOLTAGE DUAL ASSYMETRIC (Y/N): SINGLE; OUTPUT POWER (W): 5; MAX OUTPUT CURRENT (A): 1; EFFICIENCY (%): 86~93; MAX CAPACITIVE LOAD (ΜF): 220; PACKAGE TYPE: SIP3; MOUNTING: PCB; W (IN): 0.29; L (IN): 0.46; H (IN): 0.4; W (MM): 7.5; L (MM): 11.68; H (MM): 10.16; MIN OPERATING TEMPERATURE: -40; MAX OPERATING TEMPERATURE (°C): 85; EMC COMPLIANCE 2: EN 55032 CLASS B; CASE MATERIAL: PLASTIC (FLAMMABILITY TO UL 94V-0) ; APPLICATION 4 (BUILDING AUTOMATION/IOT): 1; APPLICATION 5 (INDUSTRIAL): 1; MTBF (H): 3800000; DERATING : 60; VOLTAGE ACCURACY (%): ±3; LINE REGULATION (% OF VIN): ±1; LOAD REGULATION %: ±1.5; RIPPLE & NOISE (MV P-P): 100; SWITCHING FREQUENCY TYP (KHZ): 330; SHORT CIRCUIT PROTECTION: CONTINUOUS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMSRB1-7805Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 86 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [x] | 11.7 mm |
| Size / Dimension [y] | 7.7 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

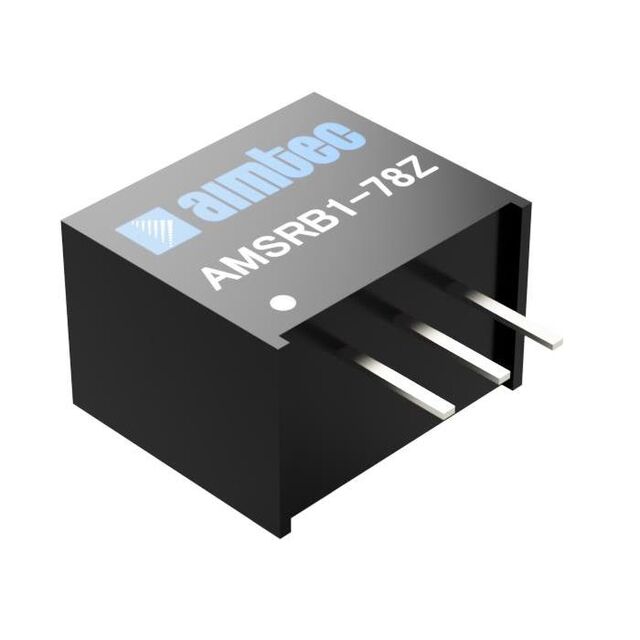

AMSRB1-7805Z
Non-Isolated PoL Module DC DC Converter 1 Output 5V 1A 8V - 28V Input
