CBT-90-W65S-C11-NA102

Active

Luminus Devices Inc.

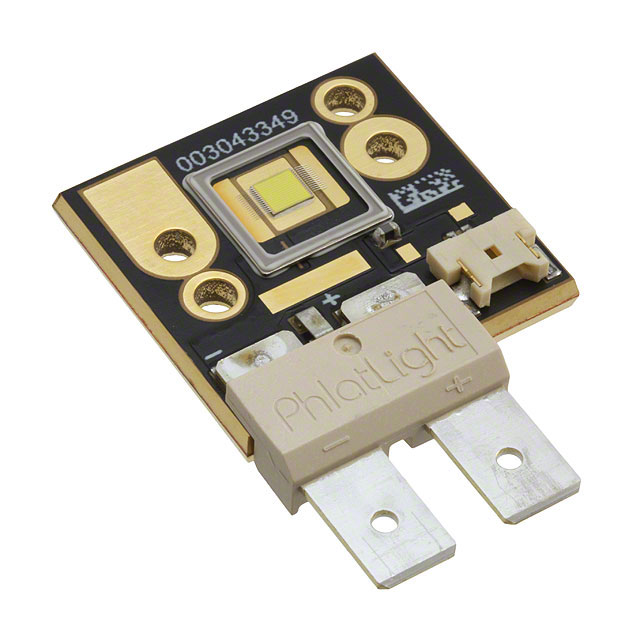

LED MOD CBT-90 CL WH RECT 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCBT-90 Binning, Labeling*CBT-White Series (90, 140) Info Note +1

CBT-90-W65S-C11-NA102

Active

Luminus Devices Inc.

LED MOD CBT-90 CL WH RECT 6500K

Deep-Dive with AI

DocumentsCBT-90 Binning, Labeling*CBT-White Series (90, 140) Info Note +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 63.85

Description

General part information

CBT-90 Series

LED Lighting COBs Engines Modules LED Module CBT-90 White, Cool Rectangle

Documents

Technical documentation and resources

CBT-90 Binning, Labeling*

Datasheet

CBT-White Series (90, 140) Info Note

Datasheet

Specification	CBT-90-W65S-C11-NA102	CBT-90 Series

CCT (K)	6500 K	5700 - 6500 K
Color	Cool, White	Green, Cool, White, Blue, Red
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	70	70 - 92
Current - Max [Max]	18 A	18 - 27 A
Current - Test	9 A	9 - 13.5 A
Features	With Connector	With Connector
Height [z]	4.08 mm	4.08 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [x]	3 mm	3 mm
Light Emitting Surface (LES) [y]	3 mm	3 mm
Lumens/Watt @ Current - Test	-	23 - 35 lm/W
Luminous Flux @ Current/Temperature	-	870 - 2150 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	26.75 mm	26.75 mm
Temperature - Test	-	40 - 70 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	3.6 V	2.5 - 4.5 V
Wavelength	-	470 - 631 nm
Wavelength	-	445 - 615 nm
Wavelength	-	455 - 621 nm

Part	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Lens Type	Current - Max [Max]	Configuration	Features	Type	Temperature - Test	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength [Min]	Wavelength	Height [z]	Color	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)
Luminus Devices Inc. CBT-90-G-L11-CM100	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	4.5 V	540 nm	510 nm	525 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W65S-C11-NA101	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
Luminus Devices Inc. CBT-90-B-L11-J100	13.5 A	26.75 mm	28 mm		3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.5 V	470 nm	445 nm	458 nm	4.08 mm	Blue
Luminus Devices Inc. CBT-90-G-L11-CM101	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	4.5 V	535 nm	520 nm	528 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-G-L11-CM102S	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.1 V			527 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W57H-C11-LA200	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module	70 °C	3.3 V				4.08 mm	Cool, White		92	5700 K
Luminus Devices Inc. CBT-90-G-L11-CM100-R2	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.1 V			527 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W65S-C11-NA102	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
Luminus Devices Inc. CBT-90-RX-L15-BN101	13.5 A	26.75 mm	28 mm	28 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	2.8 V	627 nm	615 nm	621 nm	4.08 mm	Red	1060 lm
Luminus Devices Inc. CBT-90-W65S-C11-NB100	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
