CBT-90-W57H-C11-LA200

Obsolete

Luminus Devices Inc.

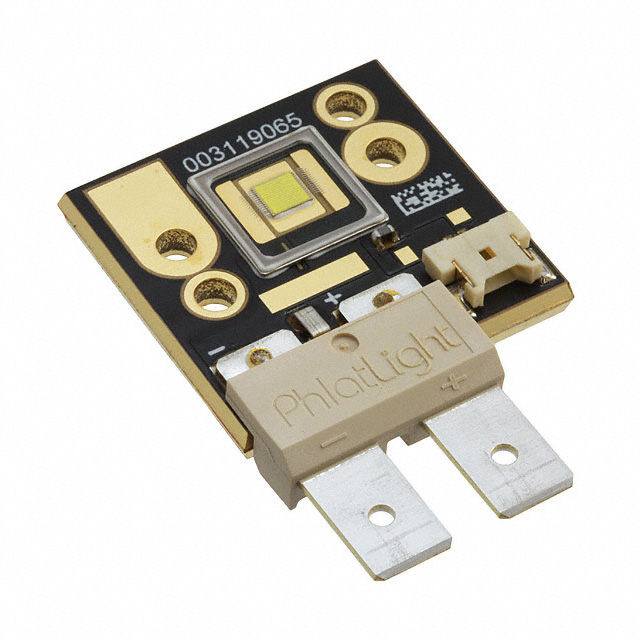

LED MOD CBT-90 CL WH RECT 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBT-90-W57H-C11-LA200

Obsolete

Luminus Devices Inc.

LED MOD CBT-90 CL WH RECT 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CBT-90 Series

LED Lighting COBs Engines Modules LED Module CBT-90 White, Cool Rectangle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBT-90-W57H-C11-LA200	CBT-90 Series

CCT (K)	5700 K	5700 - 6500 K
Color	Cool, White	Green, Cool, White, Blue, Red
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	92	70 - 92
Current - Max [Max]	18 A	18 - 27 A
Current - Test	9 A	9 - 13.5 A
Features	With Connector	With Connector
Height [z]	4.08 mm	4.08 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [x]	3 mm	3 mm
Light Emitting Surface (LES) [y]	3 mm	3 mm
Lumens/Watt @ Current - Test	-	23 - 35 lm/W
Luminous Flux @ Current/Temperature	-	870 - 2150 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	26.75 mm	26.75 mm
Temperature - Test	70 °C	40 - 70 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	3.3 V	2.5 - 4.5 V
Wavelength	-	470 - 631 nm
Wavelength	-	445 - 615 nm
Wavelength	-	455 - 621 nm

CBT-90 Series

LED MOD CBT-90 GREEN RECT

Part	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Lens Type	Current - Max [Max]	Configuration	Features	Type	Temperature - Test	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength [Min]	Wavelength	Height [z]	Color	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)
Luminus Devices Inc. CBT-90-G-L11-CM100	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	4.5 V	540 nm	510 nm	525 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W65S-C11-NA101	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
Luminus Devices Inc. CBT-90-B-L11-J100	13.5 A	26.75 mm	28 mm		3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.5 V	470 nm	445 nm	458 nm	4.08 mm	Blue
Luminus Devices Inc. CBT-90-G-L11-CM101	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	4.5 V	535 nm	520 nm	528 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-G-L11-CM102S	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.1 V			527 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W57H-C11-LA200	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module	70 °C	3.3 V				4.08 mm	Cool, White		92	5700 K
Luminus Devices Inc. CBT-90-G-L11-CM100-R2	13.5 A	26.75 mm	28 mm	35 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	3.1 V			527 nm	4.08 mm	Green	2150 lm
Luminus Devices Inc. CBT-90-W65S-C11-NA102	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
Luminus Devices Inc. CBT-90-RX-L15-BN101	13.5 A	26.75 mm	28 mm	28 lm/W	3 mm	3 mm	Flat	27 A	Rectangle	With Connector	LED Module	40 °C	2.8 V	627 nm	615 nm	621 nm	4.08 mm	Red	1060 lm
Luminus Devices Inc. CBT-90-W65S-C11-NB100	9 A	26.75 mm	28 mm		3 mm	3 mm	Flat	18 A	Rectangle	With Connector	LED Module		3.6 V				4.08 mm	Cool, White		70	6500 K
