UTGX1JC1210S

Active

Souriau-Sunbank by Eaton

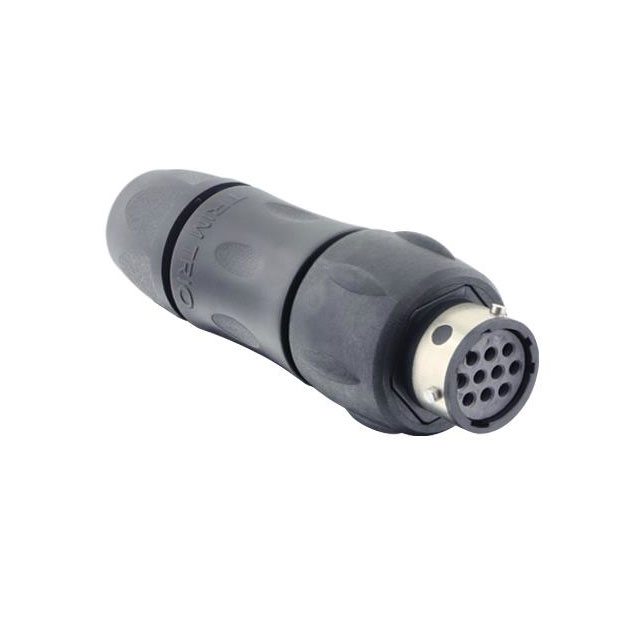

CONN RCPT HSG FMALE 10POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTGX1JC1210S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 10POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTGX1JC1210S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	UV Resistant, Backshell
Housing Color	Black
Includes	1 Backshell, 1 O-Ring, 1 Connector
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shielding	Unshielded
Type	For Female Sockets

UTGX1 Series

Part	Current Rating (Amps)	Orientation	Contact Finish - Mating	Number of Positions	Voltage Rating	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Connector Type	Contact Material	Mounting Type	Primary Material	Shielding	Insert Material	Backshell Material, Plating	Ingress Protection	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Material Flammability Rating	Contact Size	Includes	Contact Shape	Type	Housing Color	Contact Type	Note	Contact Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [Max] [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Souriau-Sunbank by Eaton UTGX1JC124PSCR	16 A	N	Gold	4	500 V	Bayonet Lock	Screw	-40 °C	105 ░C	Backshell UV Resistant	Automation Industrial Instrumentation Testing Equipment	Male Pins Receptacle	Brass	Free Hanging (In-Line)	Plastic	Unshielded	Nylon Polyamide (PA)	Nylon Polyamide (PA)	IP68 IP69K	Black	5 mm	12 mm	0.197 in	0.472 in	12-4	UL94 V-0
Souriau-Sunbank by Eaton UTGX1JC103W3P		N		6		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3W3	UL94 V-0	16 (3) 20 (3)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC103P		N				Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16	2	3	1
Souriau-Sunbank by Eaton UTGX1JC103W3S		N		6		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-3W3	UL94 V-0	16 (3) 20 (3)	1 Backshell 1 Connector 1 O-Ring	Circular	For Female Sockets	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC128P		N		8		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						12-8	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16
Souriau-Sunbank by Eaton UTGX1JC1210S		N		10		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K							UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Female Sockets	Black	Crimp	Contacts Not Included	20
Souriau-Sunbank by Eaton UTGX1JC148P		N		8		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						14-8	UL94 V-0	12 (4) 16 (4)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC102W2P		N		4		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-2W2	UL94 V-0	12 (2) 20 (2)	1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included
Souriau-Sunbank by Eaton UTGX1JC147SSCR	10 A	N	Gold		500 V	Bayonet Lock	Screw	-40 °C	105 ░C	Backshell UV Resistant	Automation Industrial Instrumentation Testing Equipment	Receptacle Female Sockets	Brass	Free Hanging (In-Line)	Plastic	Unshielded	Nylon Polyamide (PA)	Nylon Polyamide (PA)	IP68 IP69K	Black	7 mm		0.276 in	0.551 in		UL94 V-0												1	6	14 mm	14	7
Souriau-Sunbank by Eaton UTGX1JC104P		N		4		Bayonet Lock		-40 °C	105 ░C	Backshell UV Resistant		Receptacle Housing		Free Hanging (In-Line)		Unshielded	Nylon Polyamide (PA)		IP68 IP69K						10-4	UL94 V-0		1 Backshell 1 Connector 1 O-Ring	Circular	For Male Pins	Black	Crimp	Contacts Not Included	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 25.09

Description

General part information

UTGX1 Series

10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, UV Resistant

Documents

Technical documentation and resources

No documents available
