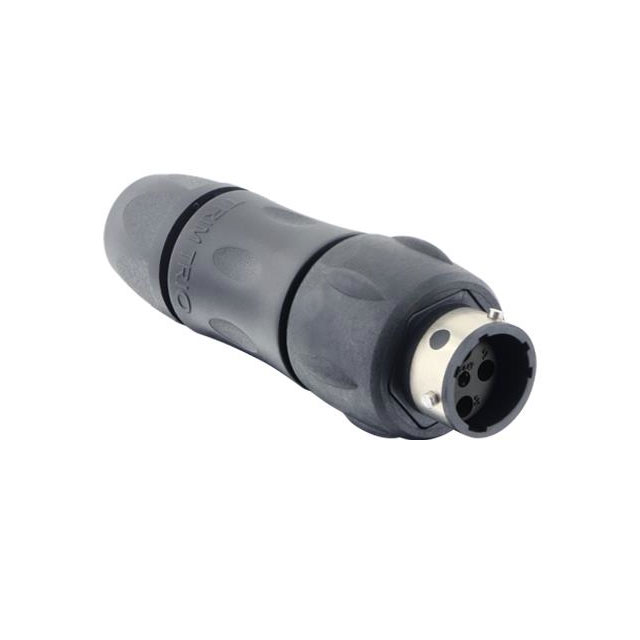

UTGX1JC124PSCR
ActiveSouriau-Sunbank by Eaton
CONN RCPT MALE 4P GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
UTGX1JC124PSCR
ActiveSouriau-Sunbank by Eaton
CONN RCPT MALE 4P GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTGX1JC124PSCR |
|---|---|
| Applications | Testing Equipment, Industrial, Automation, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 12 mm |
| Cable Opening [Max] [custom] | 0.472 in |
| Cable Opening [Min] [custom] | 5 mm |
| Cable Opening [Min] [custom] | 0.197 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 16 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 500 V |
UTGX1 Series
| Part | Current Rating (Amps) | Orientation | Contact Finish - Mating | Number of Positions | Voltage Rating | Fastening Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Applications | Connector Type | Contact Material | Mounting Type | Primary Material | Shielding | Insert Material | Backshell Material, Plating | Ingress Protection | Color | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Shell Size - Insert | Material Flammability Rating | Contact Size | Includes | Contact Shape | Type | Housing Color | Contact Type | Note | Contact Size | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Cable Opening [Max] [custom] | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | 16 A | N | Gold | 4 | 500 V | Bayonet Lock | Screw | -40 °C | 105 ░C | Backshell UV Resistant | Automation Industrial Instrumentation Testing Equipment | Male Pins Receptacle | Brass | Free Hanging (In-Line) | Plastic | Unshielded | Nylon Polyamide (PA) | Nylon Polyamide (PA) | IP68 IP69K | Black | 5 mm | 12 mm | 0.197 in | 0.472 in | 12-4 | UL94 V-0 | ||||||||||||||||
Souriau-Sunbank by Eaton | N | 6 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 10-3W3 | UL94 V-0 | 16 (3) 20 (3) | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | N | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 10-3 | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | 16 | 2 | 3 | 1 | ||||||||||||||||||||
Souriau-Sunbank by Eaton | N | 6 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 10-3W3 | UL94 V-0 | 16 (3) 20 (3) | 1 Backshell 1 Connector 1 O-Ring | Circular | For Female Sockets | Black | Crimp | Contacts Not Included | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | N | 8 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 12-8 | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | 16 | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | N | 10 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Circular | For Female Sockets | Black | Crimp | Contacts Not Included | 20 | |||||||||||||||||||||||
Souriau-Sunbank by Eaton | N | 8 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 14-8 | UL94 V-0 | 12 (4) 16 (4) | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | N | 4 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 10-2W2 | UL94 V-0 | 12 (2) 20 (2) | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | 10 A | N | Gold | 500 V | Bayonet Lock | Screw | -40 °C | 105 ░C | Backshell UV Resistant | Automation Industrial Instrumentation Testing Equipment | Receptacle Female Sockets | Brass | Free Hanging (In-Line) | Plastic | Unshielded | Nylon Polyamide (PA) | Nylon Polyamide (PA) | IP68 IP69K | Black | 7 mm | 0.276 in | 0.551 in | UL94 V-0 | 1 | 6 | 14 mm | 14 | 7 | ||||||||||||||
Souriau-Sunbank by Eaton | N | 4 | Bayonet Lock | -40 °C | 105 ░C | Backshell UV Resistant | Receptacle Housing | Free Hanging (In-Line) | Unshielded | Nylon Polyamide (PA) | IP68 IP69K | 10-4 | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring | Circular | For Male Pins | Black | Crimp | Contacts Not Included | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 51.84 | |
Description
General part information
UTGX1 Series
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Screw
